How to fit underseat draws
« on: October 01, 2012, 10:29:42 am »

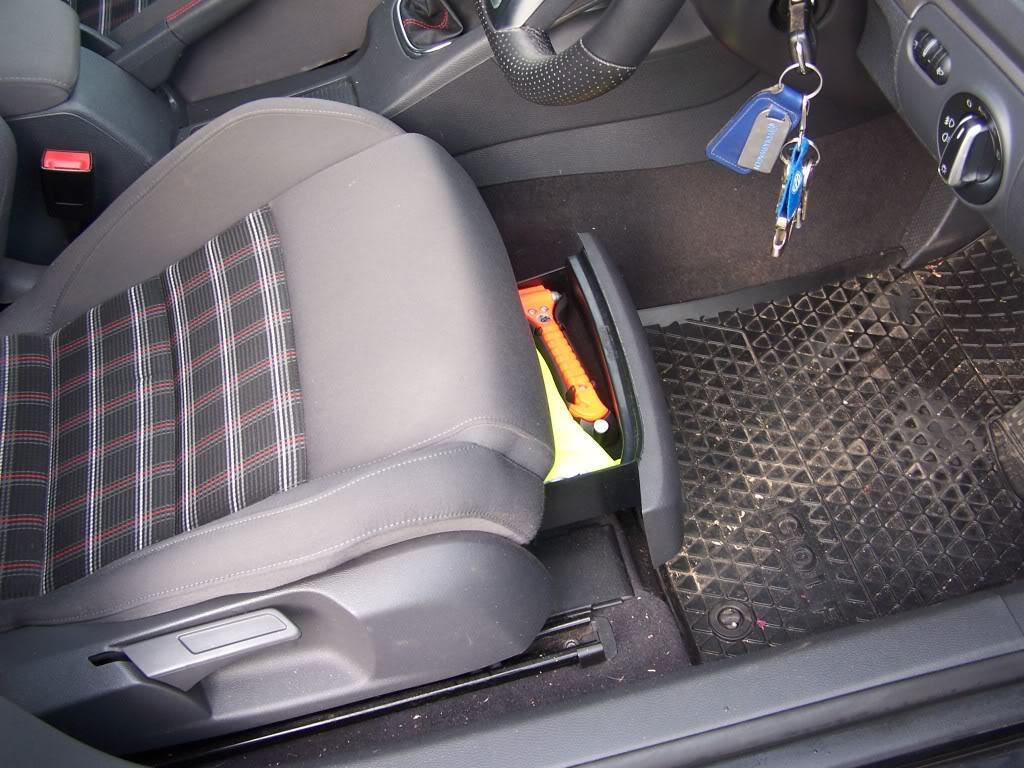

Parts required to fit Underseat Draws

Draws
Part Number:
- 1K0 882 602J (Right)
- 1K0 882 601J (Left)

Colour Codes
3U6 = Art Grey
31X = latte
7G8 = Pure Beige
71N = Anthracite

Glide Frame (not sure if this part is supplied with the draw or not)

Part Number
- 1K0 882 599B 9B9 (Left)
- 1K0 882 600B 9B9 (Right)


per draw

4x Screws = N 906 986 06
1x Screw = N 909 998 01
1x Bracket = 1K0 881 548A (right) & 1K0 881 547A (left)
2x Pop Rivets 4x8 = N 900 978 02


To start remove the negative from the battery

Using a 10XZN Bit undo the 4x Bolts that hold the seat down

Tilt the seat Back

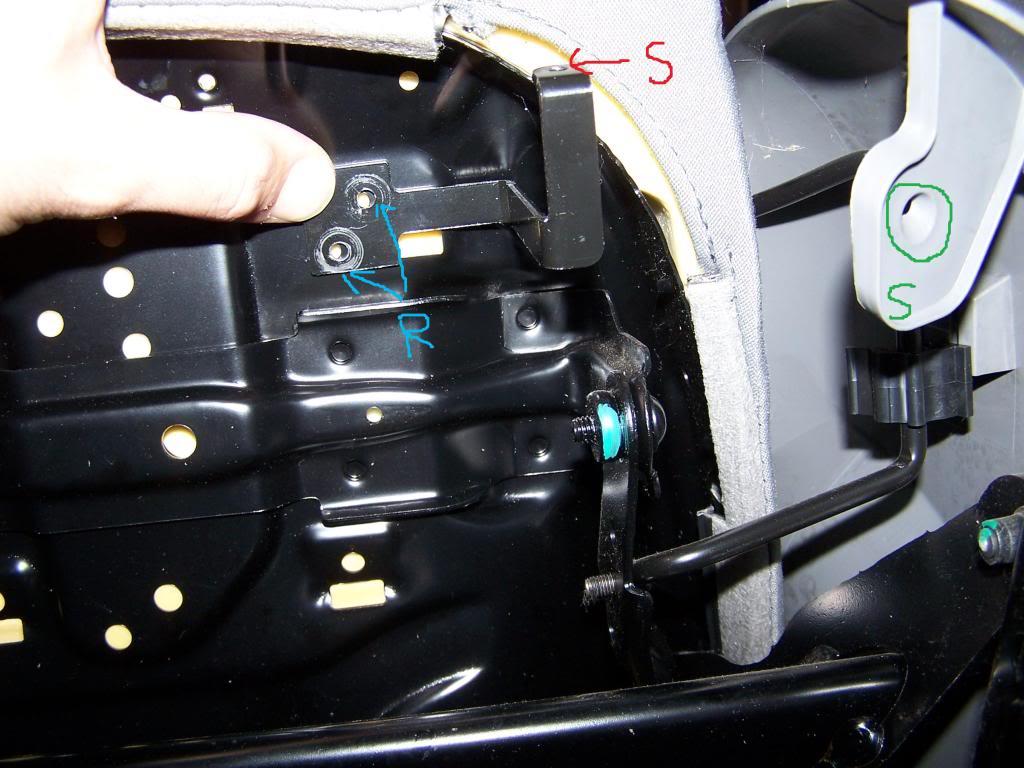

Fit the correct bracket to the corresponding seat, Line the holes up and rivet it in place

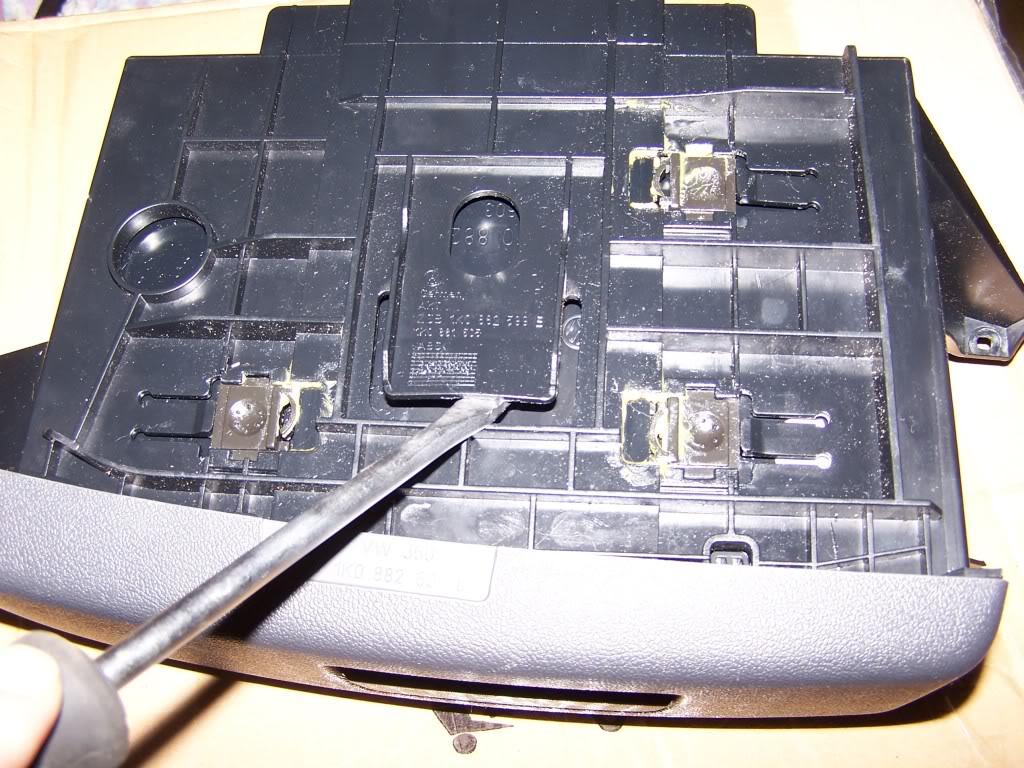

Remove the Draw from the holder, by using a large screwdriver to release the retaining tab

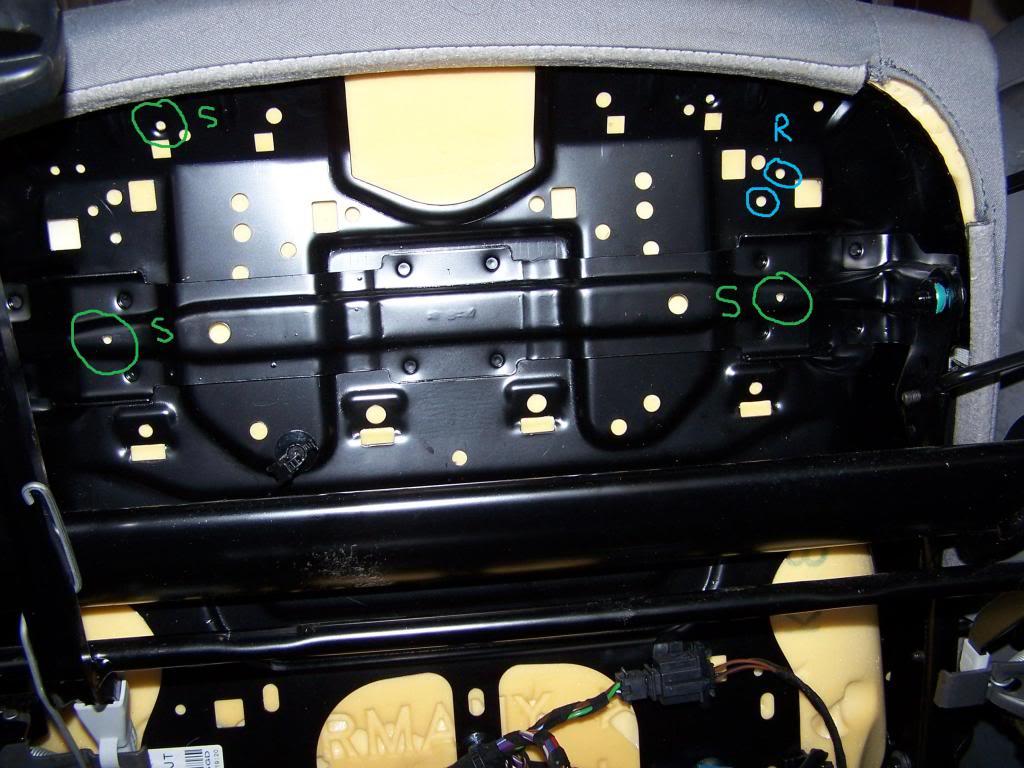

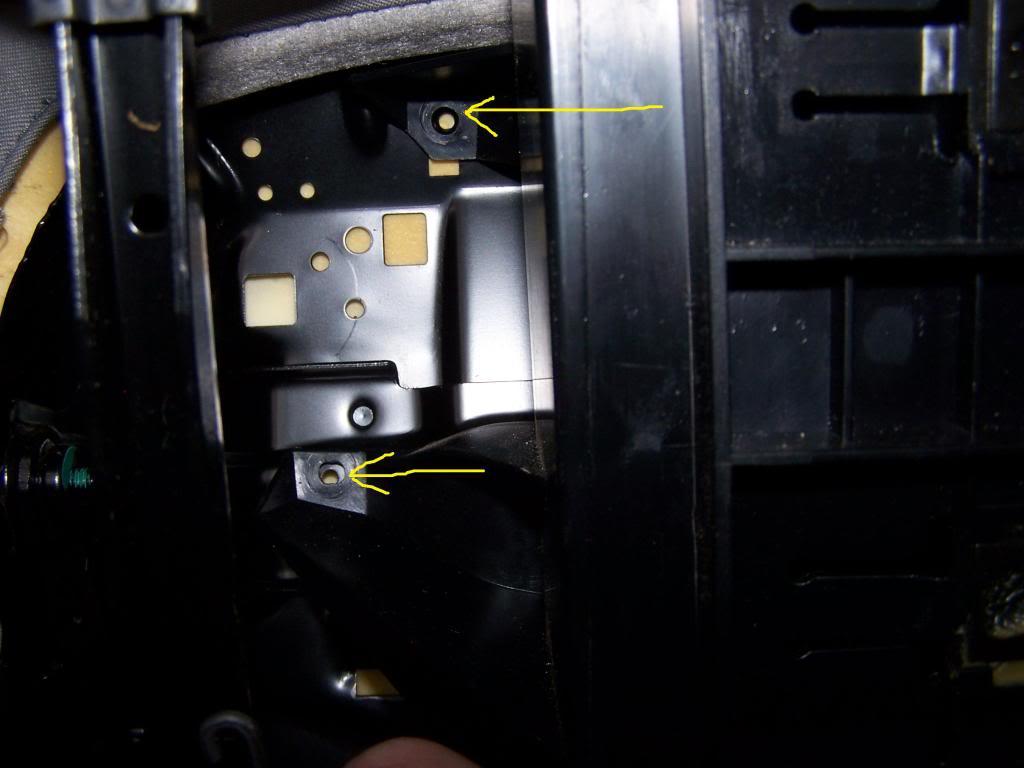

Line up the holes with the the draw (see first pic for holes)

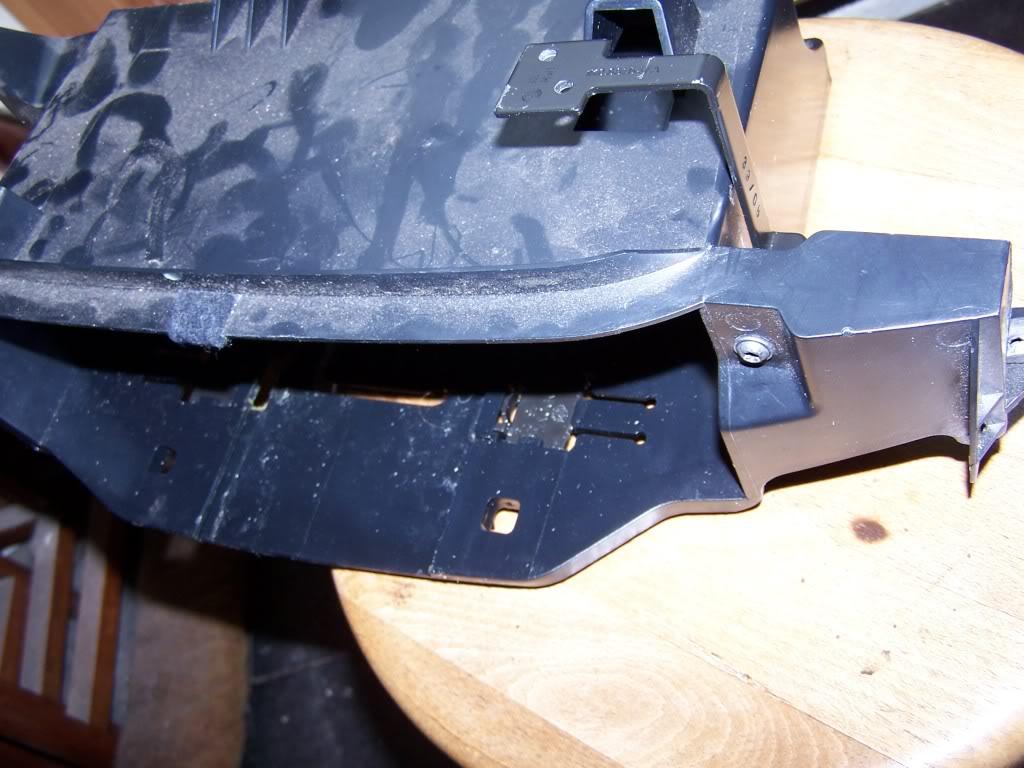

The single screws into the bracket

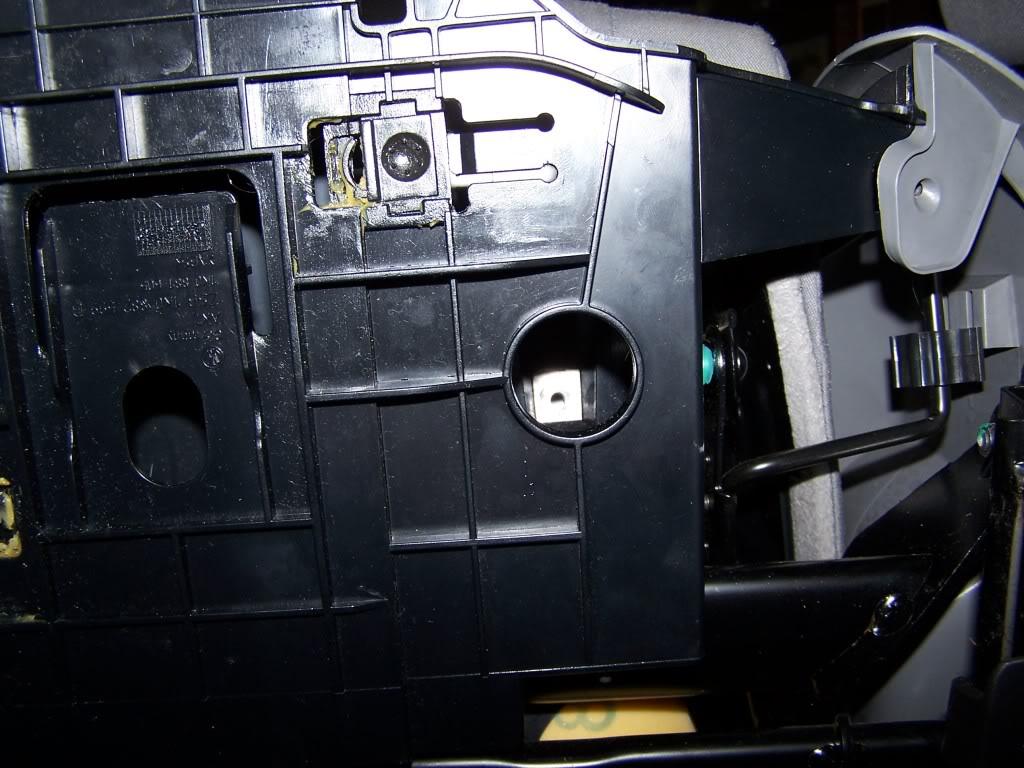

Slide the draw back in and refit the seat

Torque for Seat bolts is 40Nm

reconnect battery

Take car for a short drive to put lights out on the dash

« Last Edit: October 01, 2012, 04:39:21 pm by Eddie-NL »
Logged
Genuine VCDS VAG-COM HEX-USB + Genuine Vag Commander + Genuine VAG Tacho + Genuine VAG CAN PRO  + RNS Manager for Video in Motion and New Pin Code for RNS510


Cluster and Key coding

Location Great Yarmouth


Retrofits fitted by me see my members rides

Offline rich83

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 165
  • -Receive: 802
  • Posts: 13444
    • MK5 Golf GTI
  • My Ride: https://www.mk5golfgti.co.uk/forum/index.php?PHPSESSID=8aofptljpk7kgnihhtso1ptinr&/topic,19740.0.html
Re: How to fit underseat draws
« Reply #1 on: October 01, 2012, 11:19:18 am »
Thanks ive added it to the "How To' Sticky.  :happy2:
Logged

Offline LouCyffer

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 36
  • -Receive: 63
  • Posts: 875
Re: How to fit underseat draws
« Reply #2 on: October 01, 2012, 11:22:06 am »
 :congrats:
Cracking guide, as ever, Eddie
Logged
Black 2008 5 door GTI. Leather, DSG, ipod prep, 18" Monzas. Retrofitted: Cruise, PDC, RNS510, 729 Skoda Bluetooth (thanks SteveP), MFSW buttons (thanks MortyGTTDi), Armrest & vents, covered cupholder, Highline (thanks Kalu), Polar FIS+ (thanks Richn), Reversing camera (thanks MortyGTTDi)

Offline RedRobin

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 380
  • -Receive: 442
  • Posts: 16627
  • BIALI Motorsport's Chief Horn Blower
Re: How to fit underseat draws
« Reply #3 on: October 01, 2012, 11:36:29 am »
.
Excellent guide!  :congrats:

I wanted to fit these a long time ago but wasn't prepared to sacrifice being able to sit low and improve my centre of gravity (and look like a cool OAP!). I doubt if they fit under Recaro's anyway.

If you've got any pics to add to your original post of them installed in the cabin interior, folks would like that.  :happy2:

Logged


On facebook: https://www.facebook.com/robin.procter.50

Throbbin' Red Mk5 GTI DSG with too many mods to list - Have Fun but Safe Journeys!

Offline Eddie-NL

  • Trader - 2014
  • Just look at my post count
  • *
  • Thank You
  • -Given: 0
  • -Receive: 298
  • Posts: 2639
    • Email
  • My Ride: http://www.mk5golfgti.co.uk/forum/index.php/topic,56721.0.html
Re: How to fit underseat draws
« Reply #4 on: October 01, 2012, 12:26:48 pm »
Quote from: RedRobin on October 01, 2012, 11:36:29 am
.
Excellent guide!  :congrats:

I wanted to fit these a long time ago but wasn't prepared to sacrifice being able to sit low and improve my centre of gravity (and look like a cool OAP!). I doubt if they fit under Recaro's anyway.

If you've got any pics to add to your original post of them installed in the cabin interior, folks would like that.  :happy2:



This was a strange "How to" as I have just removed them. As I sold them, the buyer wanted some instructions. So I thought it easier to post up here than send them to his email and it will be of use to others
Logged
Genuine VCDS VAG-COM HEX-USB + Genuine Vag Commander + Genuine VAG Tacho + Genuine VAG CAN PRO  + RNS Manager for Video in Motion and New Pin Code for RNS510


Cluster and Key coding

Location Great Yarmouth


Retrofits fitted by me see my members rides

Offline marko

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 16
  • -Receive: 33
  • Posts: 903
    • Email
Re: How to fit underseat draws
« Reply #5 on: October 01, 2012, 04:15:31 pm »
any part numbers for the drawer itself???
Logged
2007 TR gt170...heated leather,underseat drawers,auto-levelling bi-xenons,puddle leds,chrome switches,footwell lights f+r,cruise control and ed30 rear lamps,LED interior....carbon highline clocks,ed30 front spoiler,RNS 510 P+MDI,mk6 gti gearknob,TPMS done,complete r32 trim kit+ MFSW,r32 f+r brakes,RLS fitted.headlamp washers,folding mirrors and boot pop,mk6 RVC,19"Helios,AP coilies,valeo LEDs  ...dpf delete and remap to finish off

Offline Eddie-NL

  • Trader - 2014
  • Just look at my post count
  • *
  • Thank You
  • -Given: 0
  • -Receive: 298
  • Posts: 2639
    • Email
  • My Ride: http://www.mk5golfgti.co.uk/forum/index.php/topic,56721.0.html
Re: How to fit underseat draws
« Reply #6 on: October 01, 2012, 04:46:32 pm »
Quote from: marko on October 01, 2012, 04:15:31 pm
any part numbers for the drawer itself???

Updated
Logged
Genuine VCDS VAG-COM HEX-USB + Genuine Vag Commander + Genuine VAG Tacho + Genuine VAG CAN PRO  + RNS Manager for Video in Motion and New Pin Code for RNS510


Cluster and Key coding

Location Great Yarmouth


Retrofits fitted by me see my members rides

Offline marko

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 16
  • -Receive: 33
  • Posts: 903
    • Email
Re: How to fit underseat draws
« Reply #7 on: October 01, 2012, 04:57:59 pm »
ty eddie...
another quick question...will these work ok on the 4 door model??
Logged
2007 TR gt170...heated leather,underseat drawers,auto-levelling bi-xenons,puddle leds,chrome switches,footwell lights f+r,cruise control and ed30 rear lamps,LED interior....carbon highline clocks,ed30 front spoiler,RNS 510 P+MDI,mk6 gti gearknob,TPMS done,complete r32 trim kit+ MFSW,r32 f+r brakes,RLS fitted.headlamp washers,folding mirrors and boot pop,mk6 RVC,19"Helios,AP coilies,valeo LEDs  ...dpf delete and remap to finish off

Offline Eddie-NL

  • Trader - 2014
  • Just look at my post count
  • *
  • Thank You
  • -Given: 0
  • -Receive: 298
  • Posts: 2639
    • Email
  • My Ride: http://www.mk5golfgti.co.uk/forum/index.php/topic,56721.0.html
Re: How to fit underseat draws
« Reply #8 on: October 01, 2012, 05:18:31 pm »
they can be fitted to all models, not sure about recaro seats though.


Logged
Genuine VCDS VAG-COM HEX-USB + Genuine Vag Commander + Genuine VAG Tacho + Genuine VAG CAN PRO  + RNS Manager for Video in Motion and New Pin Code for RNS510


Cluster and Key coding

Location Great Yarmouth


Retrofits fitted by me see my members rides

Offline bakili

  • Always Involved
  • ****
  • Thank You
  • -Given: 6
  • -Receive: 11
  • Posts: 311
    • Email
Re: How to fit underseat draws
« Reply #9 on: October 01, 2012, 05:55:22 pm »
Great guide Eddie
I am planing to fit them on weekend
Ordered bit from main dealer
1x 1K0 881 547A - Driver's Side Retainer (Metal Piece)
1x 1K0 881 548A - Passenger's Side Retainer (Metal Piece)
4x N 900 978 02 - Pop Rivet 4x8x12.3
8x N909 998 01 - Oval Hexagon Socket Head Bolt M4x8.5 (T20 Torx)

Total £11.29 inc vat.

Question??? Do I need disconnect airbag loom under seats?

Logged

Offline Eddie-NL

  • Trader - 2014
  • Just look at my post count
  • *
  • Thank You
  • -Given: 0
  • -Receive: 298
  • Posts: 2639
    • Email
  • My Ride: http://www.mk5golfgti.co.uk/forum/index.php/topic,56721.0.html
Re: How to fit underseat draws
« Reply #10 on: October 01, 2012, 06:50:49 pm »
Quote from: bakili on October 01, 2012, 05:55:22 pm
Great guide Eddie
I am planing to fit them on weekend
Ordered bit from main dealer
1x 1K0 881 547A - Driver's Side Retainer (Metal Piece)
1x 1K0 881 548A - Passenger's Side Retainer (Metal Piece)
4x N 900 978 02 - Pop Rivet 4x8x12.3
8x N909 998 01 - Oval Hexagon Socket Head Bolt M4x8.5 (T20 Torx)

Total £11.29 inc vat.

Question??? Do I need disconnect airbag loom under seats?



No need to unplug anything, just tilt the seat back

you need to order 8x screws N 906 986 06

The 8x that you have ordered are for the 2x brackets, so 6x will be spare
« Last Edit: October 01, 2012, 06:54:42 pm by Eddie-NL »
Logged
Genuine VCDS VAG-COM HEX-USB + Genuine Vag Commander + Genuine VAG Tacho + Genuine VAG CAN PRO  + RNS Manager for Video in Motion and New Pin Code for RNS510


Cluster and Key coding

Location Great Yarmouth


Retrofits fitted by me see my members rides

Offline MC71

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 413
  • -Receive: 427
  • Posts: 5198
  • Mk7 R
  • My Ride: http://www.mk5golfgti.co.uk/forum/index.php/topic,113185.0.html
Re: How to fit underseat draws
« Reply #11 on: October 01, 2012, 07:06:28 pm »
 Great guide Ed. Another mini mod for the list.  :laugh:

Out of interest, how much do the drawers themselves cost?

 :happy2:
Logged
.

                    Build thread Stage 2+ Edition 30 ~~Clicky here~~

Offline bakili

  • Always Involved
  • ****
  • Thank You
  • -Given: 6
  • -Receive: 11
  • Posts: 311
    • Email
Re: How to fit underseat draws
« Reply #12 on: October 01, 2012, 07:43:29 pm »
Quote from: Eddie-NL on October 01, 2012, 06:50:49 pm
Quote from: bakili on October 01, 2012, 05:55:22 pm
Great guide Eddie
I am planing to fit them on weekend
Ordered bit from main dealer
1x 1K0 881 547A - Driver's Side Retainer (Metal Piece)
1x 1K0 881 548A - Passenger's Side Retainer (Metal Piece)
4x N 900 978 02 - Pop Rivet 4x8x12.3
8x N909 998 01 - Oval Hexagon Socket Head Bolt M4x8.5 (T20 Torx)

Total £11.29 inc vat.

Question??? Do I need disconnect airbag loom under seats?



No need to unplug anything, just tilt the seat back

you need to order 8x screws N 906 986 06

The 8x that you have ordered are for the 2x brackets, so 6x will be spare

Thanks Eddie
Used this guide to order bits
http://golfmk6.com/forums/showthread.php?t=21486

N 906 986 06 are these shorter screws?


Logged

Offline paulmk5gti

  • Always Involved
  • ****
  • Thank You
  • -Given: 1
  • -Receive: 5
  • Posts: 175
    • Email
Re: Re: How to fit underseat draws
« Reply #13 on: October 09, 2012, 08:39:51 pm »
cracking how to :D

Sent from my GT-I9300 using Tapatalk 2
Logged

Offline MightyMullet

  • Always Involved
  • ****
  • Thank You
  • -Given: 13
  • -Receive: 5
  • Posts: 341
  • Penzance, Cornwall
Re: How to fit underseat draws
« Reply #14 on: April 18, 2013, 07:42:06 pm »
Quote from: MC71 on October 01, 2012, 07:06:28 pm
Great guide Ed. Another mini mod for the list.  :laugh:

Out of interest, how much do the drawers themselves cost?

 :happy2:

This^^^

And whatwas robin saying? Can you not fully adjust the seat with these in?
