Some Help Broke Down :(
« on: August 24, 2023, 09:01:15 pm »
HI Guys

Don't get much time for the car these days only doing the minimum to keep it running. Maybe a little less than the minimum  :scared1:

Yesterday on the motorway the car lost power and the wife and kids were stranded on the hard sholder.  :sick:

The info i have.
Battey light came on
Total loss of power car came to standstill.
Engine was still running and was shut off.

The findings
Alternator belt was snapped completly birdnested. (tow truck driver ripped out old belt.)
VCDS Below

Now

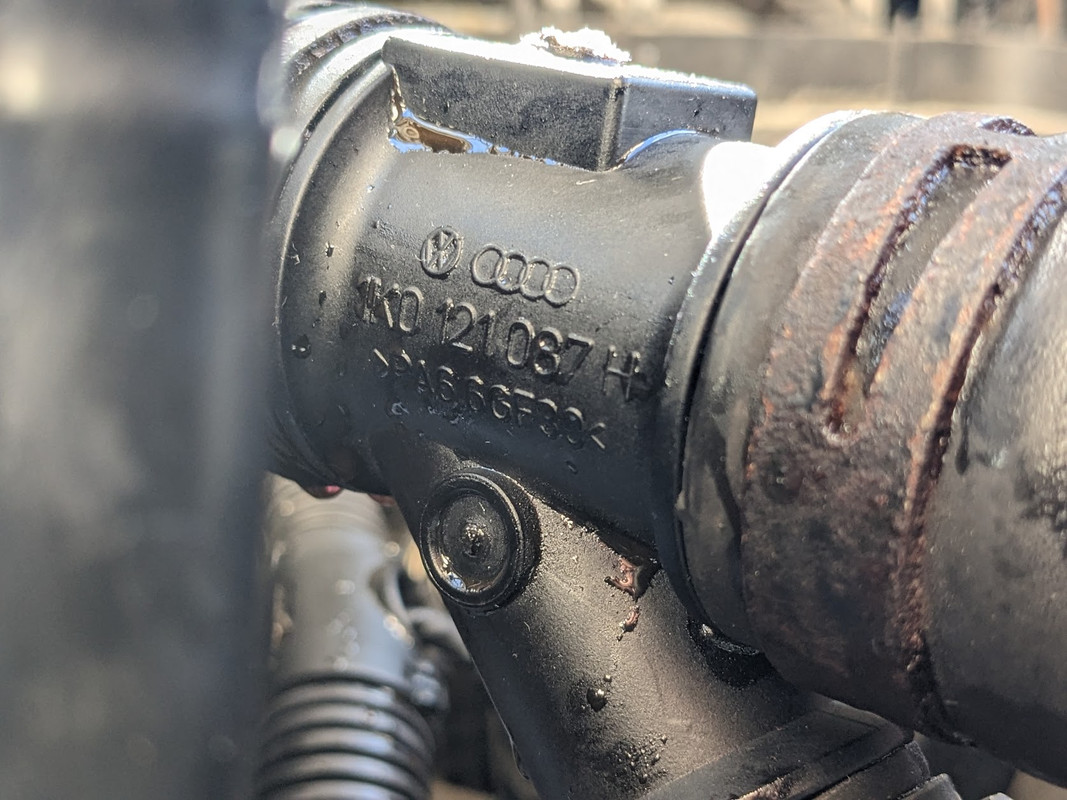

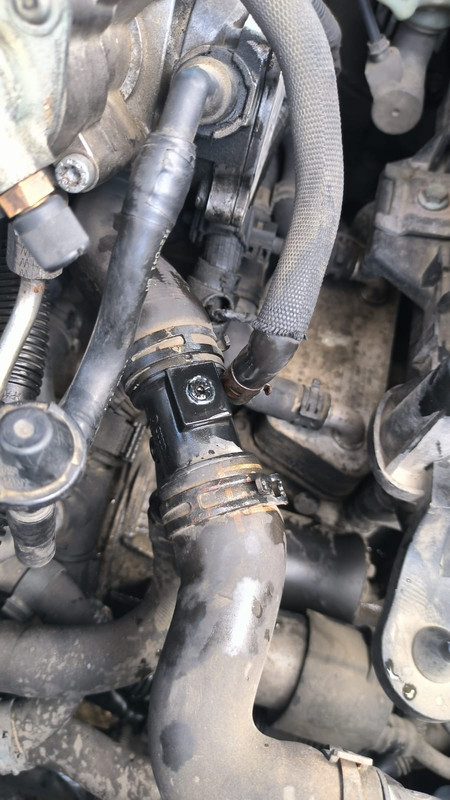

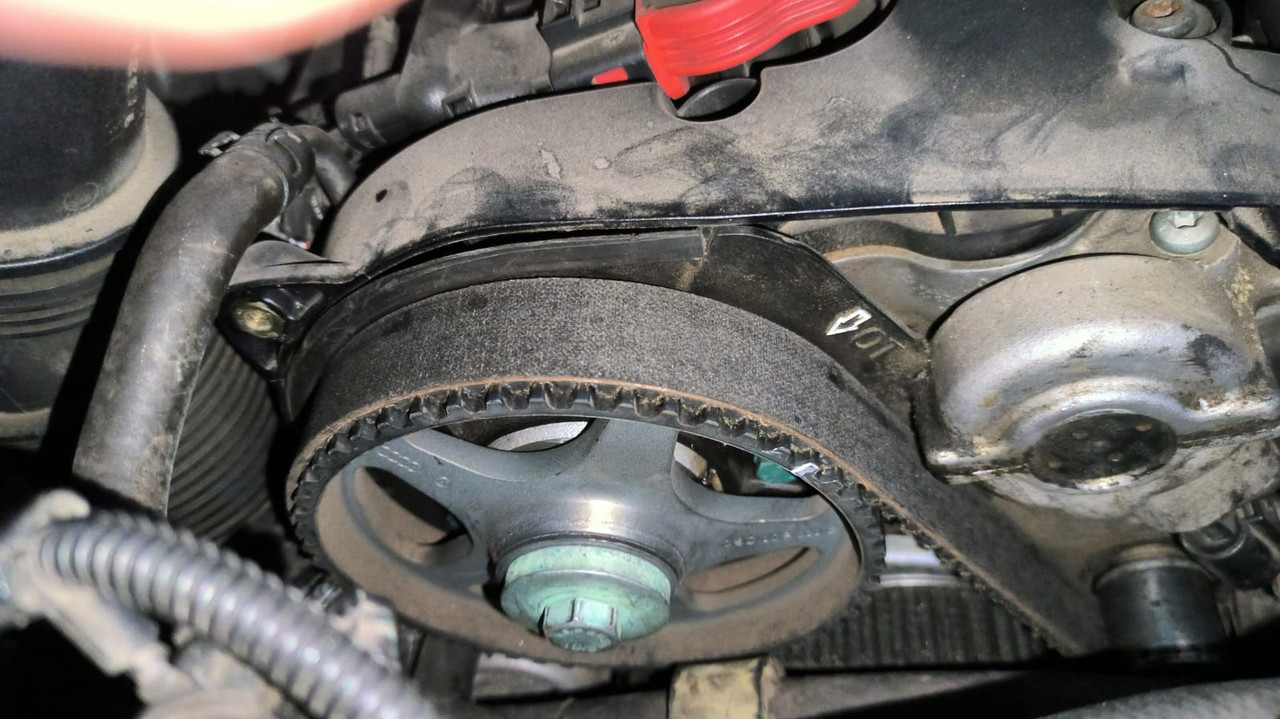

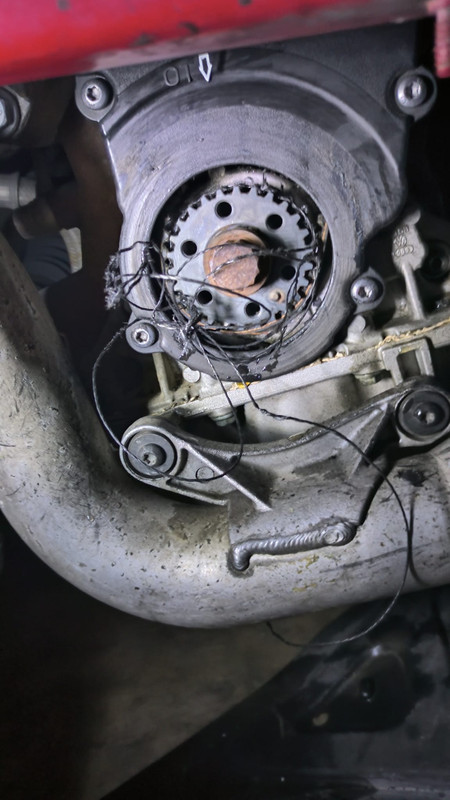

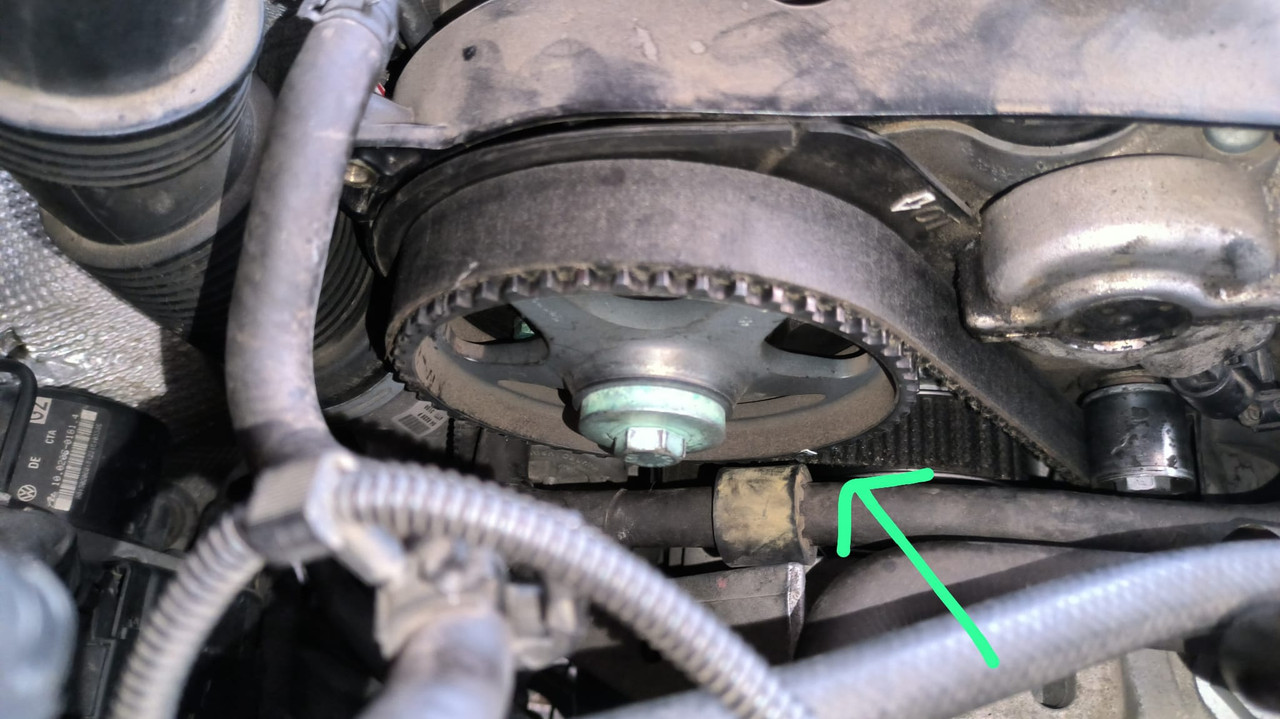

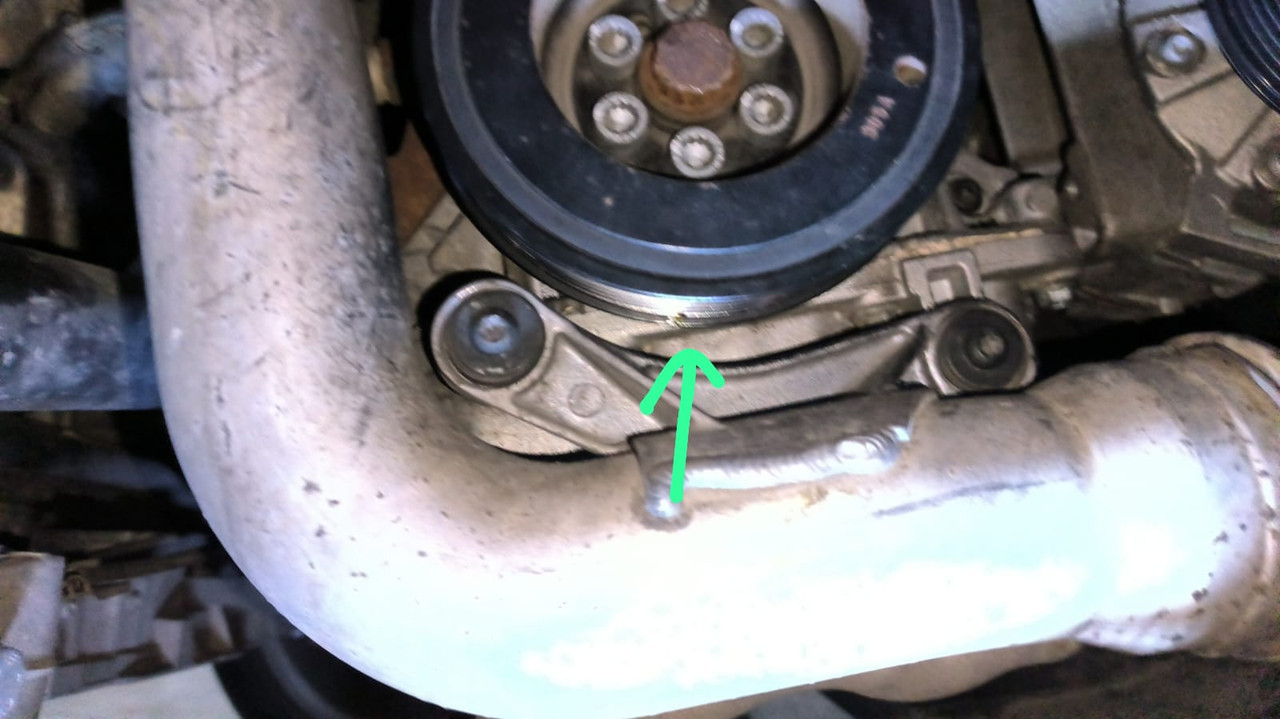

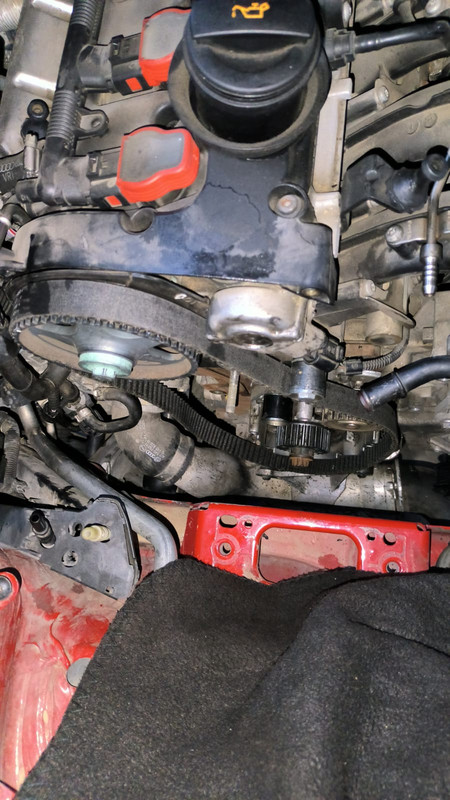

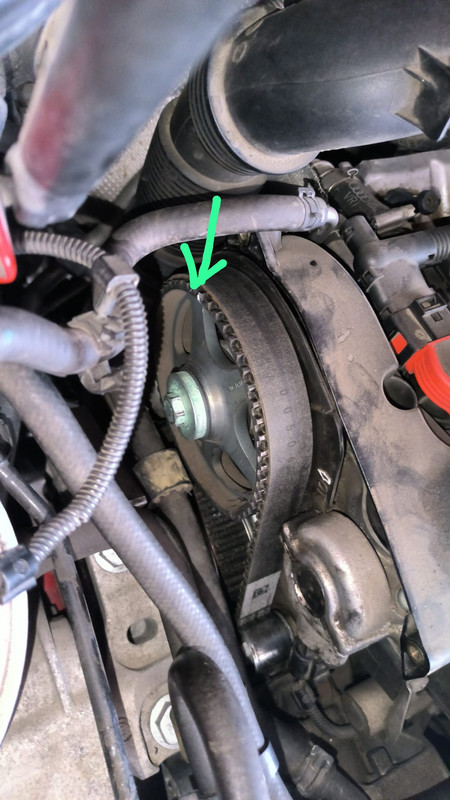

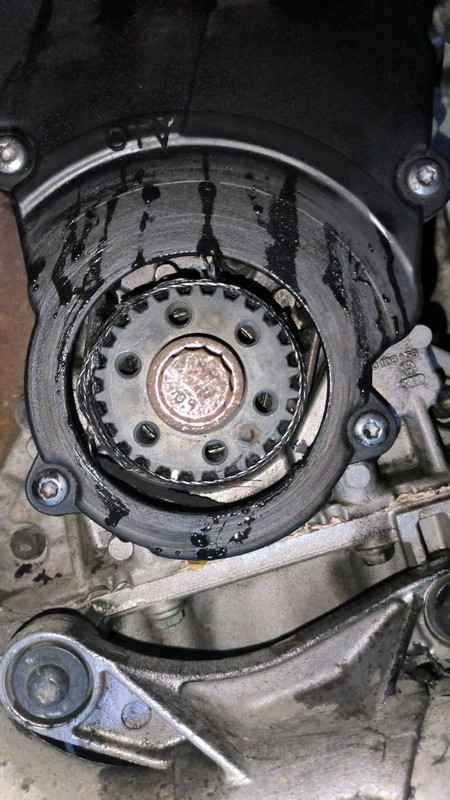

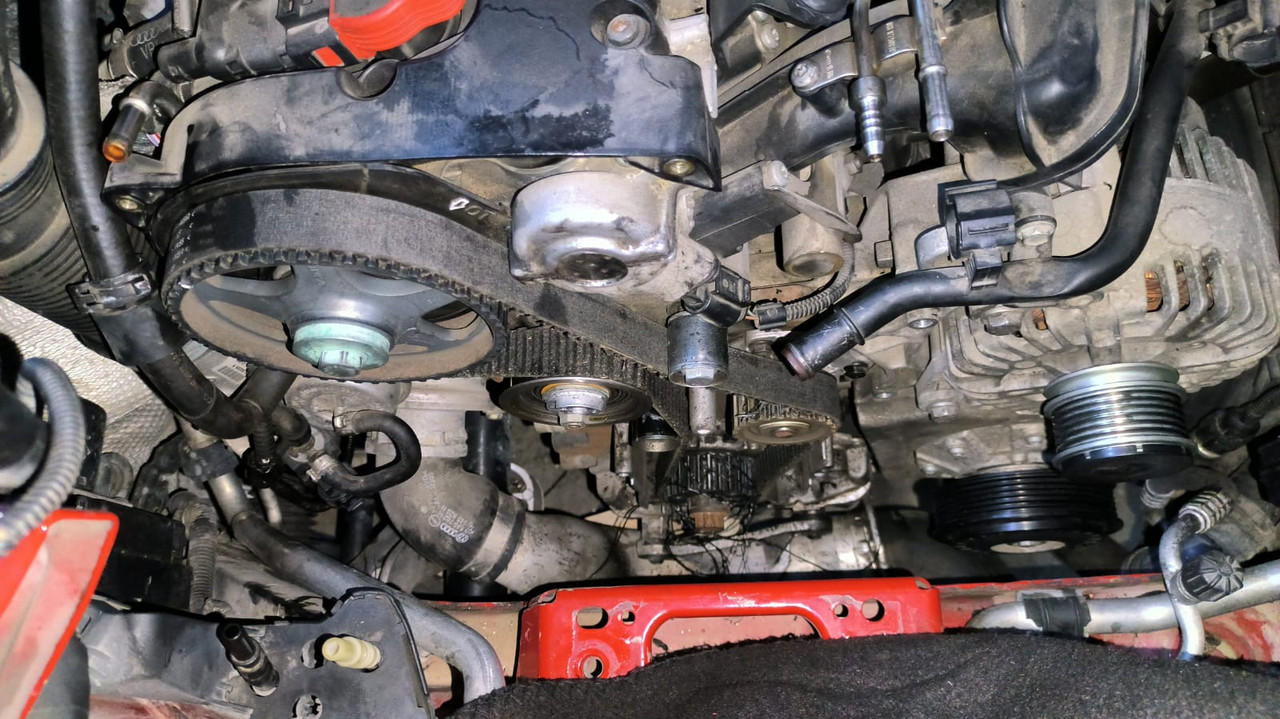

I replaced the alternator belt and also checked the cambelt the cambelt is warn but its expected as i changed it 8 years ago.
Car just turns over and does not start.
EPC is on not sure if this is always on when trying to start.
Its strange how there was a loss of power.
Its very squeeky when turning over.

Any help is greatly appreciated.
