Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #15 on: March 23, 2011, 11:34:03 am »
How about -

http://www.kufatec.de/shop/product_info.php/info/p496_Aux-In-Jack---3-5mm-Adapter---VW-MFD2---RNS2.html

You could make this very easily yourself and use the OEM socket rather than the plug pictured here.

The plug for the radio end, two repair wires and the OEM socket from VW and 2 metres of 2 core screened cable from Maplin.  :evilgrin:

Simpless
Logged
Stu...

Quartz Grey Audi A4 3.0 TDi S-Line Quattro, 7 Speed S-Tronic, 19" Twin Spoke Alloys, Alcantara Upholstery with Silver Stitching and Heating, Sat Nav High, B & O Sound, Audi Music Interface, DAB Radio, Parking Advanced with Rear View Camera, Advanced Keyless Entry, LED Interior Light Pack, Hill Hold Assist, Heated and Electrically Folding Mirrors, Through Load.

RNS510 Video in Motion unlocking, PIN recovery & DVD Region Free available

Offline rich83

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 165
  • -Receive: 802
  • Posts: 13444
    • MK5 Golf GTI
  • My Ride: https://www.mk5golfgti.co.uk/forum/index.php?PHPSESSID=fgqktlhj3bphqu84d67llctdg1&/topic,19740.0.html
Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #16 on: March 23, 2011, 11:36:38 am »
Will that work tho? Thats for the MFD2 that has a dedicated AUX in.
Logged

Offline vRStu

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 90
  • -Receive: 159
  • Posts: 2562
    • Octavia-vRS Information Resource
Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #17 on: March 23, 2011, 11:46:57 am »
Hmm, just looked at some pinout diagrams of the 500 and it seems as though the pins are there they aren't labeled so I guess it depends on the version of RCD500, some have silver and some dark buttons but I seem to remember pressing CD twice will toggle between CD and Aux.

I was going to suggest the socket used here -

Logged
Stu...

Quartz Grey Audi A4 3.0 TDi S-Line Quattro, 7 Speed S-Tronic, 19" Twin Spoke Alloys, Alcantara Upholstery with Silver Stitching and Heating, Sat Nav High, B & O Sound, Audi Music Interface, DAB Radio, Parking Advanced with Rear View Camera, Advanced Keyless Entry, LED Interior Light Pack, Hill Hold Assist, Heated and Electrically Folding Mirrors, Through Load.

RNS510 Video in Motion unlocking, PIN recovery & DVD Region Free available

Offline vRStu

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 90
  • -Receive: 159
  • Posts: 2562
    • Octavia-vRS Information Resource
Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #18 on: March 23, 2011, 11:54:49 am »
I've had a look some stuff I have here and I think you need to have the newer RCD500 MP3 (logo just below the CD slot) to have an Aux in.
Logged
Stu...

Quartz Grey Audi A4 3.0 TDi S-Line Quattro, 7 Speed S-Tronic, 19" Twin Spoke Alloys, Alcantara Upholstery with Silver Stitching and Heating, Sat Nav High, B & O Sound, Audi Music Interface, DAB Radio, Parking Advanced with Rear View Camera, Advanced Keyless Entry, LED Interior Light Pack, Hill Hold Assist, Heated and Electrically Folding Mirrors, Through Load.

RNS510 Video in Motion unlocking, PIN recovery & DVD Region Free available

Offline rich83

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 165
  • -Receive: 802
  • Posts: 13444
    • MK5 Golf GTI
  • My Ride: https://www.mk5golfgti.co.uk/forum/index.php?PHPSESSID=fgqktlhj3bphqu84d67llctdg1&/topic,19740.0.html
Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #19 on: March 23, 2011, 11:56:49 am »
But the adapter i linked to makes an aux in from the CD changer slot.
Logged

Offline alexperkins

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 7
  • -Receive: 99
  • Posts: 2122
Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #20 on: March 23, 2011, 11:57:26 am »
The adapter uses CD 1 as its play source  :happy2:
Logged


VCDS Scanning/Coding, RNS and MDI retrofits, and specialist mechanics services with VAGtek available - Just PM me for details.

Offline vRStu

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 90
  • -Receive: 159
  • Posts: 2562
    • Octavia-vRS Information Resource
Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #21 on: March 23, 2011, 12:18:52 pm »
Quote from: richwig83 on March 23, 2011, 11:56:49 am
But the adapter i linked to makes an aux in from the CD changer slot.

I didn't say it didn't, I was offering an alternative.  :evilgrin:
Logged
Stu...

Quartz Grey Audi A4 3.0 TDi S-Line Quattro, 7 Speed S-Tronic, 19" Twin Spoke Alloys, Alcantara Upholstery with Silver Stitching and Heating, Sat Nav High, B & O Sound, Audi Music Interface, DAB Radio, Parking Advanced with Rear View Camera, Advanced Keyless Entry, LED Interior Light Pack, Hill Hold Assist, Heated and Electrically Folding Mirrors, Through Load.

RNS510 Video in Motion unlocking, PIN recovery & DVD Region Free available

Offline Resonance

  • Always Involved
  • ****
  • Thank You
  • -Given: 20
  • -Receive: 2
  • Posts: 92
  • ED 30 Steel Grey DSG
    • Email
Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #22 on: March 30, 2011, 07:08:52 pm »
Need help!

Just receive the kit and it has an extra wire from the unit which is the black wire, not sure where it's meant to go and the diagram provided isn't much help!



Logged

Offline alexperkins

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 7
  • -Receive: 99
  • Posts: 2122
Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #23 on: March 30, 2011, 07:10:23 pm »
A better picture of the diagram would help  :signLOL:
Logged


VCDS Scanning/Coding, RNS and MDI retrofits, and specialist mechanics services with VAGtek available - Just PM me for details.

Offline Resonance

  • Always Involved
  • ****
  • Thank You
  • -Given: 20
  • -Receive: 2
  • Posts: 92
  • ED 30 Steel Grey DSG
    • Email
Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #24 on: March 30, 2011, 07:21:12 pm »
Logged

Offline alexperkins

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 7
  • -Receive: 99
  • Posts: 2122
Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #25 on: March 30, 2011, 07:23:28 pm »

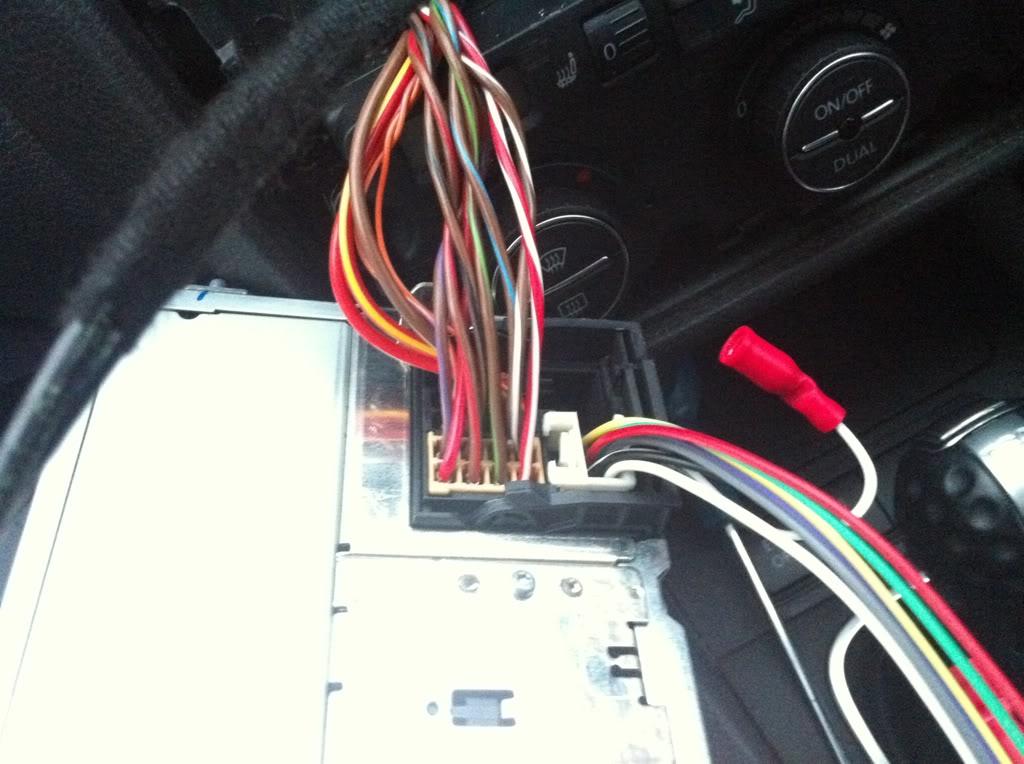

Looks like its an earth mate.
Logged


VCDS Scanning/Coding, RNS and MDI retrofits, and specialist mechanics services with VAGtek available - Just PM me for details.

Offline Resonance

  • Always Involved
  • ****
  • Thank You
  • -Given: 20
  • -Receive: 2
  • Posts: 92
  • ED 30 Steel Grey DSG
    • Email
Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #26 on: March 30, 2011, 07:27:21 pm »
Quote from: alexperkins on March 30, 2011, 07:23:28 pm
Looks like its an earth mate.

I'm guessing I can just crimp it into the thick brown cable coming from the main headunit?
Logged

Offline rich83

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 165
  • -Receive: 802
  • Posts: 13444
    • MK5 Golf GTI
  • My Ride: https://www.mk5golfgti.co.uk/forum/index.php?PHPSESSID=fgqktlhj3bphqu84d67llctdg1&/topic,19740.0.html
Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #27 on: March 30, 2011, 07:29:03 pm »
I'm almost 100% sure than it should be connected to earth!
Logged

Offline Resonance

  • Always Involved
  • ****
  • Thank You
  • -Given: 20
  • -Receive: 2
  • Posts: 92
  • ED 30 Steel Grey DSG
    • Email
Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #28 on: March 30, 2011, 07:32:46 pm »
Quote from: richwig83 on March 30, 2011, 07:29:03 pm
I'm almost 100% sure than it should be connected to earth!

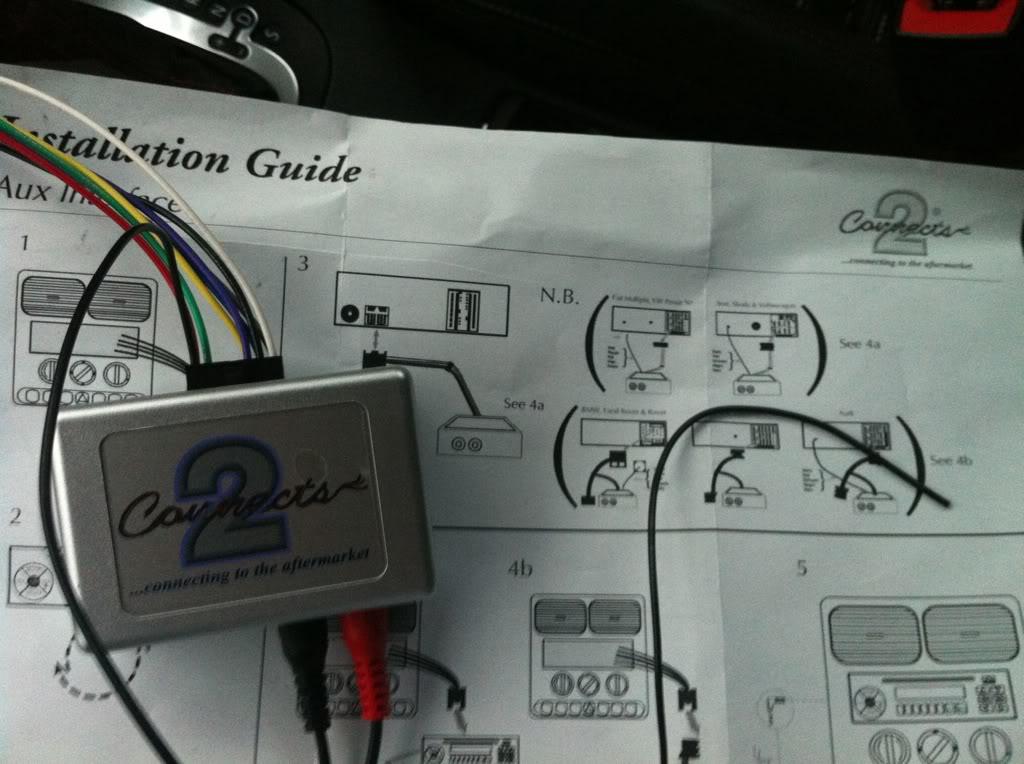

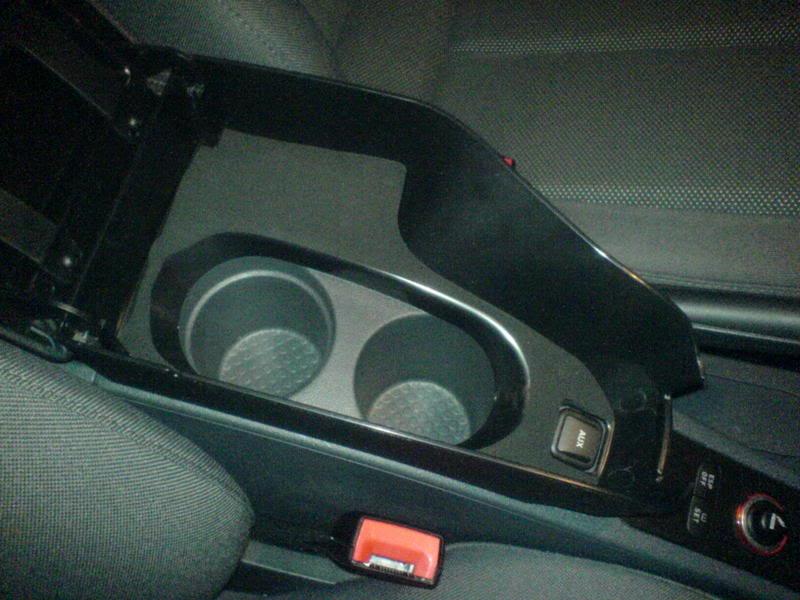

All sorted and working now! Thanks guys you were spot on as usual!
Logged

Offline GrayMK5GTI

  • Global Moderator
  • Just look at my post count
  • *
  • Thank You
  • -Given: 125
  • -Receive: 248
  • Posts: 4165
Re: RCD500 - Can a 3.5mm Audio jack be fitted to it?
« Reply #29 on: March 30, 2011, 09:27:59 pm »
I bought one of those off eBay and it's poor . There's loads of interference from the ignition system (or turbo) (a whistling noise that changes pitch with the engine revs), I can't control my iPhone with the cd player buttons and to top it off, it doesn't charge my iPhone- even with the optional charging head on it.

Does yours work ok?
