Author Topic: Correction Detail - Edition 30 Golf GTI  (Read 5190 times)

Offline RussZS

  • Always Involved
  • ****
  • Thank You
  • -Given: 88
  • -Receive: 17
  • Posts: 325
    • Email
Correction Detail - Edition 30 Golf GTI
« on: June 19, 2011, 11:13:58 pm »
Wow, what a day!  I left my house at 7:15 this morning, and got in at 21:00!  I'm shattered!  Luckily, I still have enough energy for a write up, so here goes...

Today saw me travel to a deceptively sunny (based on my BURN!) Rugby, to restore some life back into the paintwork of this VERY well spec'd Edition 30 Golf GTI in black.  Like many black cars, it was being robbed of its true potential finish wise by various scuffs, scratches and swirl marks, inflicted over a period of time from cheap hand car washes etc.

The task for today was to reverse this hardship as much as possible within a days window, which is no easy task on a rock hard (paint wise) German car.

The car upon arrival:


P1050289 by RussZS, on Flickr


P1050290 by RussZS, on Flickr


P1050291 by RussZS, on Flickr


P1050292 by RussZS, on Flickr


P1050293 by RussZS, on Flickr


P1050294 by RussZS, on Flickr

It was in superb condition, but the finish lacked a little sparkle, and was suffering slightly from the 'milky' finish which seems to plague this particular colour.

As ever, I started with the wheels.

Autosmart G101:


P1050296 by RussZS, on Flickr

and various brushes:


P1050297 by RussZS, on Flickr

I started off with a liberal spraying of G101 on the wheel face and rear:


P1050298 by RussZS, on Flickr

Worked with Envy brush on the front, and Wheel Wooly on the rear:


P1050300 by RussZS, on Flickr

Tyres were also treated to G101 and worked with a larger Envy brush:


P1050301 by RussZS, on Flickr

Arches also dealt with via G101 and a Vikan Brush:


P1050302 by RussZS, on Flickr

The tar spots collecting in the wheel corners was treated with AS Tardis:


P1050303 by RussZS, on Flickr

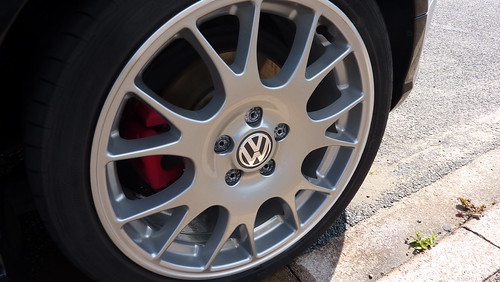

All clean :)


P1050304 by RussZS, on Flickr

Next up, the car was snow foamed:


P1050307 by RussZS, on Flickr


P1050309 by RussZS, on Flickr

Whilst dwelling, the shuts, sills and surrounds were agitated with another Envy Brush:


P1050310 by RussZS, on Flickr

Then the car was rinsed, ready for hand washing:


P1050313 by RussZS, on Flickr


P1050315 by RussZS, on Flickr

Next up, hand washing with...


P1050295 by RussZS, on Flickr


P1050316 by RussZS, on Flickr


P1050317 by RussZS, on Flickr

The car was then rinsed, and Tardis was used to deal with the tar on the lower panels around the car.  (No pics, as it's black!)


P1050318 by RussZS, on Flickr

The car was the clayed with Elite Polyclay with Citrus Bling as lube, snow foamed again, rinsed and dried with an Elite Uber Drying Towel:


P1050321 by RussZS, on Flickr

Next up, the car was moved onto the driveway so that I could begin polishing prep, but first I took the opportunity to deal with the pesky water runs which plague the Mk5 Golf, particularly from the wing mirror area!


P1050323 by RussZS, on Flickr


P1050322 by RussZS, on Flickr

Sorted :)

I must do a vid of that thing in action, but it's a god send for dealing with trapped water.  It's designed as a pet drier, but is ideal for use on cars too, and has both hot and cold air options.

My PDG was used next to asses the paintworks depth and to look for any obvious signs of resprayed panels or thin paint.

The readings ranged from:


P1050326 by RussZS, on Flickr

to:


P1050327 by RussZS, on Flickr

So, perfectly normal for this car and colour.

The car was taped up ready for polishing, and I began working my way around the car looking for any obvious areas of concern, RDS's, etc.

It soon became apparent that the previous owner seemed to enjoy using their touch up stick a bit too much, and had a few failed attempts at removing swirls, presumably with something like the non metallic T-Cut, resulting in:


P1050328 by RussZS, on Flickr

This would be dealt with later.

www.midlandscarcare.co.uk - www.facebook.com/midlandscarcare

I used to be indecisive.......... but now I'm not so sure!

Offline RussZS

  • Always Involved
  • ****
  • Thank You
  • -Given: 88
  • -Receive: 17
  • Posts: 325
    • Email
Re: Correction Detail - Edition 30 Golf GTI
« Reply #1 on: June 19, 2011, 11:15:19 pm »
After testing various combinations on the car, I settled on the use of Menzera Fast Gloss (S500) and 3.02.

Some pics of the correction work...

50/50:


P1050331 by RussZS, on Flickr


P1050333 by RussZS, on Flickr

There were various RDS's around the car.  We agreed to knock them back in line with swirl removal on this occasion, and to deal with them in isolation on a future date, after I've been on a training course for wet sanding, allowing safer and more isolated removal of deeper scratches.


P1050335 by RussZS, on Flickr

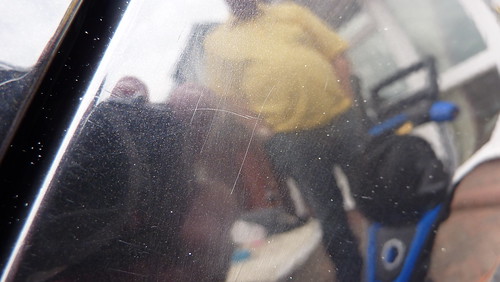

T-Cut marks:


P1050337 by RussZS, on Flickr

After:


P1050339 by RussZS, on Flickr

Another 50/50 using camera flash:


P1050345 by RussZS, on Flickr

Other deeper scratches from T-Cut use:


P1050355 by RussZS, on Flickr

After:


P1050356 by RussZS, on Flickr

Post polishing pic:


P1050361 by RussZS, on Flickr


P1050362 by RussZS, on Flickr


P1050366 by RussZS, on Flickr


P1050368 by RussZS, on Flickr


P1050372 by RussZS, on Flickr


P1050374 by RussZS, on Flickr

(Light swirling still evident, but largely removed  - remember this is a one day detail, so not really possible to achieve absolute perfection)


P1050377 by RussZS, on Flickr


P1050391 by RussZS, on Flickr

Boot taped up ready for correction:


P1050386 by RussZS, on Flickr

50/50 from boot:


P1050393 by RussZS, on Flickr


P1050397 by RussZS, on Flickr

Again, not perfect, but massively improved, given the time constraints.

50/50 from driver side:


P1050399 by RussZS, on Flickr


P1050400 by RussZS, on Flickr

I finished up with...

- Optimum Opti Seal on alloys
- Chemical Guys New Look Trim Gel on tyres
- AS 20/20 on glass
- Optimum Metal Polish on exhaust
- Chemical Guys 50/50 Ltd Edition on the paintwork
- Zaino Z8 in door shuts

Now, the car isn't perfect by any means, but is massively improved from the start of the day.  I have agreed to sort the deeper scratches in a few weeks time, and also am going to look at the lights, some stone chips and a few other bits.

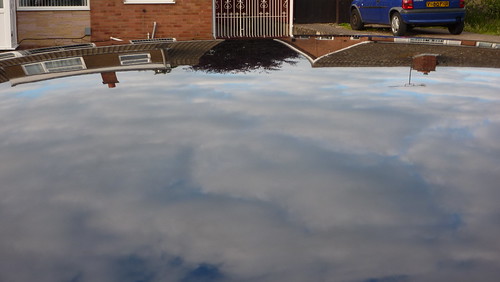

Some final shots:


P1050405 by RussZS, on Flickr


P1050406 by RussZS, on Flickr


P1050407 by RussZS, on Flickr


P1050409 by RussZS, on Flickr


P1050410 by RussZS, on Flickr


P1050411 by RussZS, on Flickr


P1050412 by RussZS, on Flickr


P1050417 by RussZS, on Flickr


P1050418 by RussZS, on Flickr


P1050421 by RussZS, on Flickr


P1050423 by RussZS, on Flickr


P1050424 by RussZS, on Flickr


P1050425 by RussZS, on Flickr

Thanks for reading :)

Cheers,
Russ.
www.midlandscarcare.co.uk - www.facebook.com/midlandscarcare

I used to be indecisive.......... but now I'm not so sure!

Offline stealthwolf

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 306
  • -Receive: 291
  • Posts: 7835
  • ED30 No.1412
    • Email
Re: Correction Detail - Edition 30 Golf GTI
« Reply #2 on: June 19, 2011, 11:19:52 pm »
 :congrats:

Loved the write up. Is that a 3m sungun? I made my own from the guide on DW recently. Bit of a comedy effort!  :grin:

Looking forward to the write up once you get the wetsanding done. Something I really need to learn, especially given the number of new marks I spotted on the car this morning when drying.  :fighting:
« Last Edit: June 19, 2011, 11:23:06 pm by stealthwolf »

The GTI isn't just a machine. It's very much a living, breathing thing.

Offline Boothy

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 24
  • -Receive: 32
  • Posts: 951
  • All donations accepted, thanks.
Re: Correction Detail - Edition 30 Golf GTI
« Reply #3 on: June 19, 2011, 11:51:22 pm »
Nice write up mate and the finished result is mighty impressive.

Offline RussZS

  • Always Involved
  • ****
  • Thank You
  • -Given: 88
  • -Receive: 17
  • Posts: 325
    • Email
Re: Correction Detail - Edition 30 Golf GTI
« Reply #4 on: June 19, 2011, 11:57:49 pm »
:congrats:

Loved the write up. Is that a 3m sungun? I made my own from the guide on DW recently. Bit of a comedy effort!  :grin:

Looking forward to the write up once you get the wetsanding done. Something I really need to learn, especially given the number of new marks I spotted on the car this morning when drying.  :fighting:

Thanks Jaz :)

It's the DIY Sun Gun from DW!  Just needs a better bulb really, but it works a treat!

KDS course is on 31st July, so I'll do the rest in Aug :)
www.midlandscarcare.co.uk - www.facebook.com/midlandscarcare

I used to be indecisive.......... but now I'm not so sure!

Offline stealthwolf

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 306
  • -Receive: 291
  • Posts: 7835
  • ED30 No.1412
    • Email
Re: Correction Detail - Edition 30 Golf GTI
« Reply #5 on: June 20, 2011, 06:48:21 am »
Which bulb do you have in it? B&Q didn't have the 35W ones (or at least none where the boxes were untampered) so I had to get a 50W one. I forgot to get a bulb holder and couldn't find my soldering iron so I hotglued the wires on to the bulb pins. Works fine except that the 50W bulb can get so hot that it melts the glue!!!   :laugh: I'm going to buy one of those Solux bulbs at some point.

The GTI isn't just a machine. It's very much a living, breathing thing.

Saint Steve

  • Guest
Re: Correction Detail - Edition 30 Golf GTI
« Reply #6 on: June 20, 2011, 07:55:42 am »
Great work russ :happy2:

Offline johnboy07

  • Always Involved
  • ****
  • Thank You
  • -Given: 3
  • -Receive: 10
  • Posts: 234
    • Email
Re: Correction Detail - Edition 30 Golf GTI
« Reply #7 on: June 20, 2011, 08:50:21 pm »
top work. :happy2: Always makes me want to detail my car again seing how good black cars look when nice and shiny.
Stage 2+ 280.4 bhp ITG, Revo Stage 2+, decat, hpfp, THS intercooler, THS engine mounts, Pcv revamp, sportline springs, rs4 fuel valve, DS2500 pads and brembo discs, braided lines, ATE super blue brake fluid and more to come

Offline RussZS

  • Always Involved
  • ****
  • Thank You
  • -Given: 88
  • -Receive: 17
  • Posts: 325
    • Email
Re: Correction Detail - Edition 30 Golf GTI
« Reply #8 on: June 20, 2011, 08:59:33 pm »
Thanks all :)

Russ.
www.midlandscarcare.co.uk - www.facebook.com/midlandscarcare

I used to be indecisive.......... but now I'm not so sure!

Offline Hedge

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 484
  • -Receive: 304
  • Posts: 6621
Re: Correction Detail - Edition 30 Golf GTI
« Reply #9 on: June 20, 2011, 09:05:59 pm »
Nice that  :happy2:

Offline JPC

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 93
  • -Receive: 111
  • Posts: 6222
Re: Correction Detail - Edition 30 Golf GTI
« Reply #10 on: June 20, 2011, 09:17:29 pm »
nice russ, especially outside lol

Offline RussZS

  • Always Involved
  • ****
  • Thank You
  • -Given: 88
  • -Receive: 17
  • Posts: 325
    • Email
Re: Correction Detail - Edition 30 Golf GTI
« Reply #11 on: June 20, 2011, 09:20:54 pm »
I'm sure he can vacuum it himself  :happy2:
www.midlandscarcare.co.uk - www.facebook.com/midlandscarcare

I used to be indecisive.......... but now I'm not so sure!

Offline JPC

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 93
  • -Receive: 111
  • Posts: 6222
Re: Correction Detail - Edition 30 Golf GTI
« Reply #12 on: June 20, 2011, 09:25:29 pm »
I'm sure he can vacuum it himself  :happy2:

 :confused:

Offline RussZS

  • Always Involved
  • ****
  • Thank You
  • -Given: 88
  • -Receive: 17
  • Posts: 325
    • Email
Re: Correction Detail - Edition 30 Golf GTI
« Reply #13 on: June 20, 2011, 09:26:54 pm »
Sorry maybe I didn't "get" your comment?

You had a "dig" on the thread for Al's car too...
www.midlandscarcare.co.uk - www.facebook.com/midlandscarcare

I used to be indecisive.......... but now I'm not so sure!

Offline Deako

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 38
  • -Receive: 44
  • Posts: 1655
  • Eat, Sleep....VAG
Re: Correction Detail - Edition 30 Golf GTI
« Reply #14 on: June 20, 2011, 10:06:58 pm »
I thought Jay meant it was good work considering it was outside?
