Author Topic: Skirts Help  (Read 2663 times)

Offline RunRabbit

  • Always Involved
  • ****
  • Thank You
  • -Given: 0
  • -Receive: 0
  • Posts: 162
    • Email
Skirts Help
« on: April 07, 2009, 05:52:00 pm »

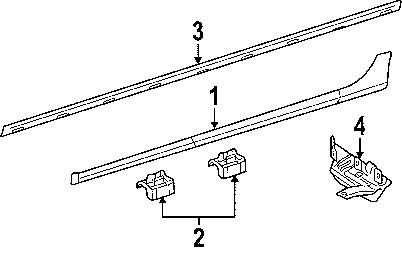

Could anyone post up the ETKA diagrams for the R32/GTI Skirts

I need to find out how they attach at the bottom, I'm pretty sure they're just taped along the top with some adhesive at the large end??

Cheers

Offline JPC

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 93
  • -Receive: 111
  • Posts: 6222
Re: Skirts Help
« Reply #1 on: April 07, 2009, 05:57:17 pm »
no there is a kit you need for each side. theres about four brackets on each side need fitting then they slot and screw on i think?

sorry no pics! :(

Offline VC

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 80
  • -Receive: 93
  • Posts: 4359
    • Very Cherry Stickers and Decals
Re: Skirts Help
« Reply #2 on: April 07, 2009, 06:06:06 pm »

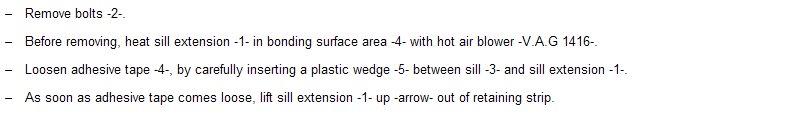

(Grey line indicates where to apply heat to release adhesive)

Offline RunRabbit

  • Always Involved
  • ****
  • Thank You
  • -Given: 0
  • -Receive: 0
  • Posts: 162
    • Email
Re: Skirts Help
« Reply #3 on: April 07, 2009, 06:08:51 pm »
Cheers Cherry, don't suppose you have one with the "blocks" that attach them to the bottom, I'm trying to fit some.

Offline VC

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 80
  • -Receive: 93
  • Posts: 4359
    • Very Cherry Stickers and Decals
Re: Skirts Help
« Reply #4 on: April 07, 2009, 06:11:42 pm »
as in along the sill?

Offline JPC

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 93
  • -Receive: 111
  • Posts: 6222
Re: Skirts Help
« Reply #5 on: April 07, 2009, 06:12:14 pm »
yep, they have blocks fitted with them.

my etka has dissapeared after my work computer went bang! :(

Offline RunRabbit

  • Always Involved
  • ****
  • Thank You
  • -Given: 0
  • -Receive: 0
  • Posts: 162
    • Email
Re: Skirts Help
« Reply #6 on: April 07, 2009, 06:15:06 pm »
as in along the sill?

Underneath, I'm pretty sure it's just bonded and sticky taped up the top but the bottom has blocks that go into the bodywork when you remove the grommets and are screwed in.

Offline VC

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 80
  • -Receive: 93
  • Posts: 4359
    • Very Cherry Stickers and Decals
Re: Skirts Help
« Reply #7 on: April 07, 2009, 06:36:36 pm »

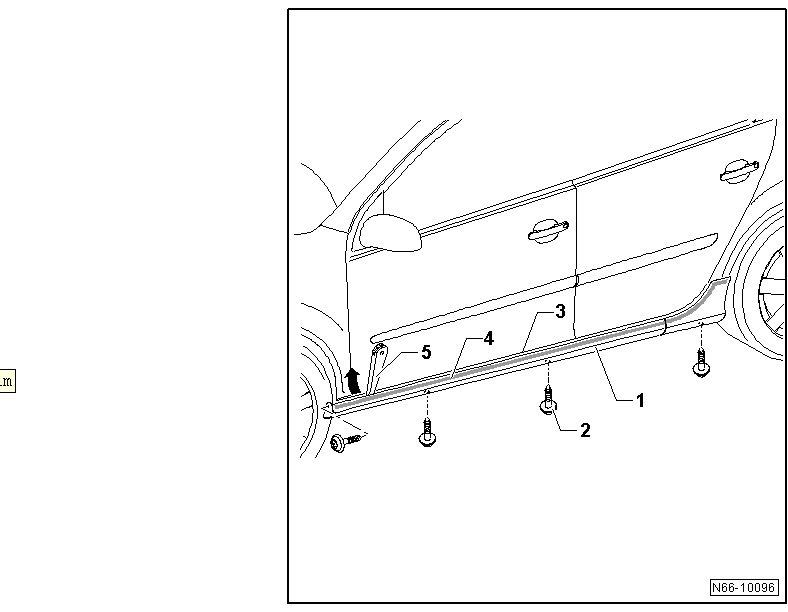

Sill Extension:

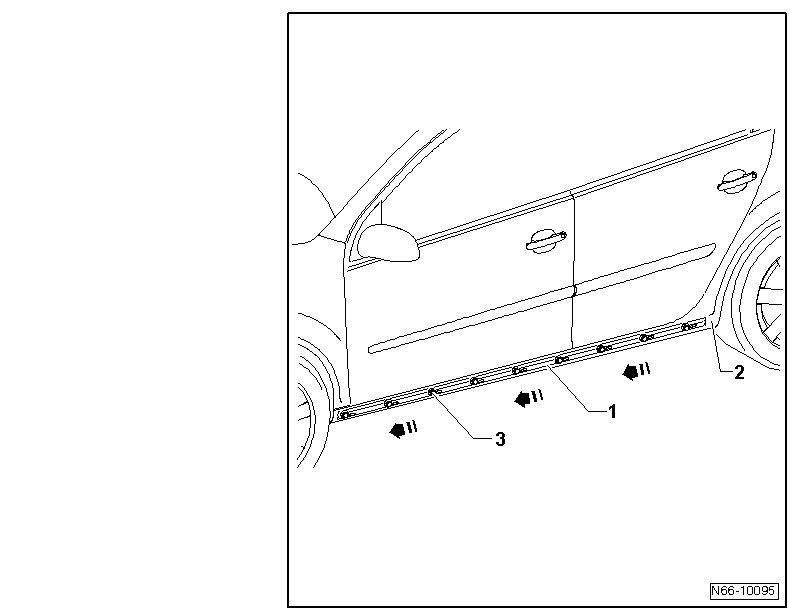

Sill retaining strip




Offline RunRabbit

  • Always Involved
  • ****
  • Thank You
  • -Given: 0
  • -Receive: 0
  • Posts: 162
    • Email
Re: Skirts Help
« Reply #8 on: April 07, 2009, 07:07:54 pm »


Cheers!

Just need to get the blocks, screws and some new 3M tape.

Offline xxx_mojo_xxx

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 39
  • -Receive: 19
  • Posts: 1406
  • MUBster DUBster
    • Project MUBster DUBster Evolution
    • Email
Re: Skirts Help
« Reply #9 on: April 07, 2009, 10:08:05 pm »
Thanks, this is very useful... just getting mine installed this Thursday - will pass on this info to the fitters.

Offline RunRabbit

  • Always Involved
  • ****
  • Thank You
  • -Given: 0
  • -Receive: 0
  • Posts: 162
    • Email
Re: Skirts Help
« Reply #10 on: April 07, 2009, 10:21:27 pm »
Thanks, this is very useful... just getting mine installed this Thursday - will pass on this info to the fitters.




Offline joesgti

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 8
  • -Receive: 35
  • Posts: 4855
  • Eat my sick, Eat my sick.
Re: Skirts Help
« Reply #11 on: April 08, 2009, 09:27:30 am »
when i took mine off there were LOADS of sticky pads under the skirts aswell,  :smiley:
