Wrings Diagrams - Headlights
« on: January 20, 2012, 10:06:58 pm »
The previous owner put in some R32 xenons with crap ballasts and hacked away at wiring  :fighting:
I now have genuine but cant work out sod all! I have a Haynes manual but doesnt show core colour in that detail for headlights. Anyone got one? Or want to help a fellow mk5 owner out big time for beers?
Logged

Offline Phil Miller

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 86
  • -Receive: 34
  • Posts: 744
    • Email
Re: Wrings Diagrams - Headlights
« Reply #1 on: January 20, 2012, 10:17:02 pm »
where are you based to mate?
Logged
2004 Golf 5dr TDI, 140 remap, GTI front bumper, skirts, highline cluster, 18in wheels, jamax coilovers, winter pack
WANTED HIGHLINE CCM AND CECM PLEASE PM ME IF YOU CAN HELP

Offline Bikerz

  • Always Involved
  • ****
  • Thank You
  • -Given: 2
  • -Receive: 2
  • Posts: 182
    • Email
Re: Wrings Diagrams - Headlights
« Reply #2 on: January 20, 2012, 10:45:15 pm »
Gloucestershire Home Town. Swansea University. Or anywhere in between. Willing to drive and this is driving me nuts!
Logged

Offline Bikerz

  • Always Involved
  • ****
  • Thank You
  • -Given: 2
  • -Receive: 2
  • Posts: 182
    • Email
Re: Wrings Diagrams - Headlights
« Reply #3 on: January 20, 2012, 11:08:10 pm »
Anyone fancy taking a pic of their 10 or 12 pin connectors so I can see what colours go where? Both sides please as they are different
Logged

Offline Phil Miller

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 86
  • -Receive: 34
  • Posts: 744
    • Email
Re: Wrings Diagrams - Headlights
« Reply #4 on: January 20, 2012, 11:48:11 pm »
Quote from: Bikerz on January 20, 2012, 11:08:10 pm
Anyone fancy taking a pic of their 10 or 12 pin connectors so I can see what colours go where? Both sides please as they are different

I will take some pics of mine in the morning and post them up for you mate, mine is standard lights so it will be the 10 pin  :happy2: will make sure i get clear pics to show wire colour for both sides
Logged
2004 Golf 5dr TDI, 140 remap, GTI front bumper, skirts, highline cluster, 18in wheels, jamax coilovers, winter pack
WANTED HIGHLINE CCM AND CECM PLEASE PM ME IF YOU CAN HELP

Offline Bikerz

  • Always Involved
  • ****
  • Thank You
  • -Given: 2
  • -Receive: 2
  • Posts: 182
    • Email
Re: Wrings Diagrams - Headlights
« Reply #5 on: January 20, 2012, 11:51:01 pm »
You are a star! I love forums!
Logged

Offline Eddie-NL

  • Trader - 2014
  • Just look at my post count
  • *
  • Thank You
  • -Given: 0
  • -Receive: 298
  • Posts: 2639
    • Email
  • My Ride: http://www.mk5golfgti.co.uk/forum/index.php/topic,56721.0.html
Re: Wrings Diagrams - Headlights
« Reply #6 on: January 21, 2012, 09:46:17 am »
Logged
Genuine VCDS VAG-COM HEX-USB + Genuine Vag Commander + Genuine VAG Tacho + Genuine VAG CAN PRO  + RNS Manager for Video in Motion and New Pin Code for RNS510


Cluster and Key coding

Location Great Yarmouth


Retrofits fitted by me see my members rides

Offline Bikerz

  • Always Involved
  • ****
  • Thank You
  • -Given: 2
  • -Receive: 2
  • Posts: 182
    • Email
Re: Wrings Diagrams - Headlights
« Reply #7 on: January 21, 2012, 08:49:52 pm »
Cheers buddy, however doesnt really help me as at teh min I have loads of cables of different colours with no connectors. I need to get a 10 or 12 pin connector and connect teh correct colours to the correct pin.
Logged

Offline Phil Miller

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 86
  • -Receive: 34
  • Posts: 744
    • Email
Re: Wrings Diagrams - Headlights
« Reply #8 on: January 22, 2012, 11:42:04 am »

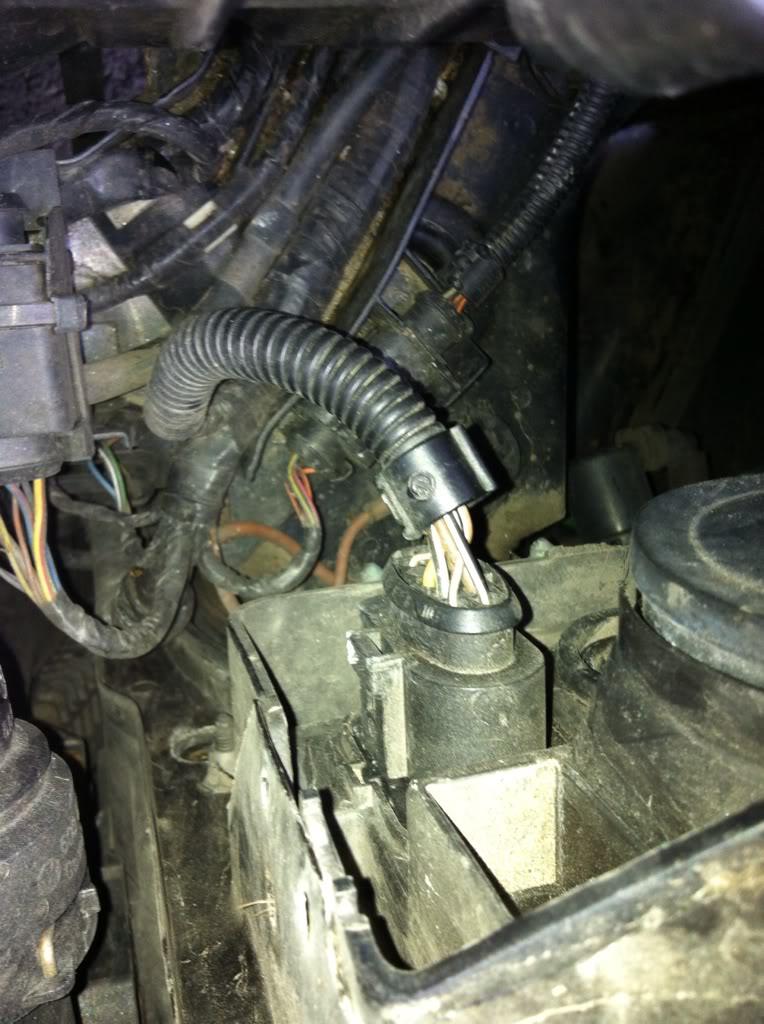

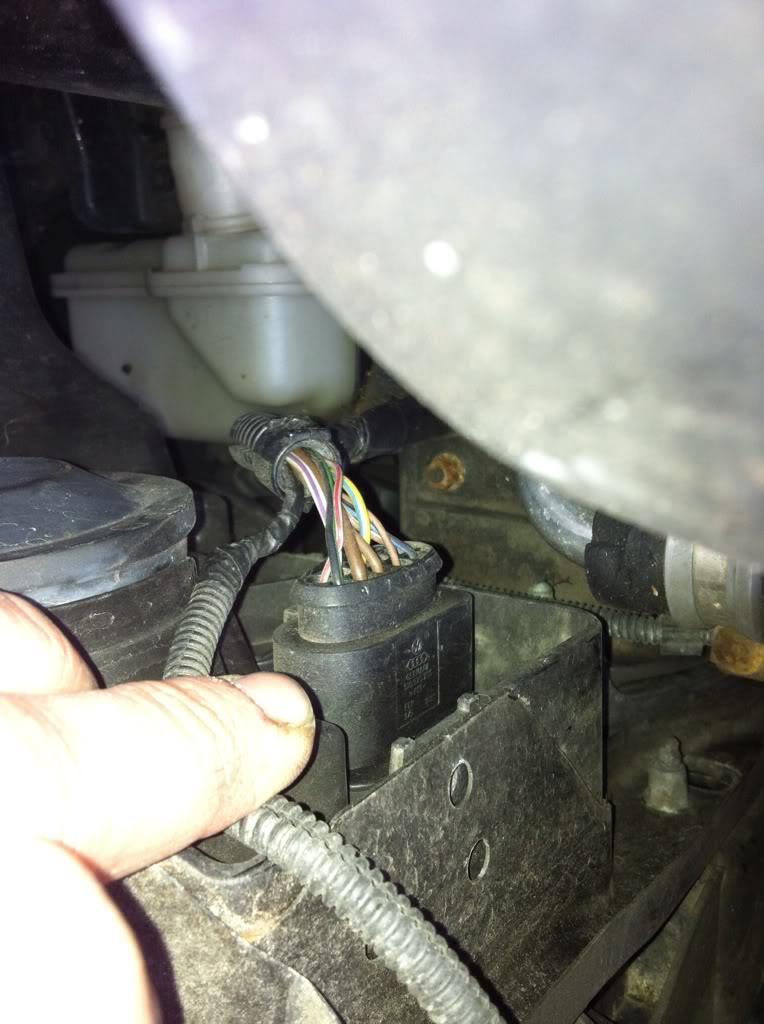

here are the pics mate, if you need anymore info i will help as best i can



Logged
2004 Golf 5dr TDI, 140 remap, GTI front bumper, skirts, highline cluster, 18in wheels, jamax coilovers, winter pack
WANTED HIGHLINE CCM AND CECM PLEASE PM ME IF YOU CAN HELP

Offline Bikerz

  • Always Involved
  • ****
  • Thank You
  • -Given: 2
  • -Receive: 2
  • Posts: 182
    • Email
Re: Wrings Diagrams - Headlights
« Reply #9 on: January 22, 2012, 11:02:54 pm »
Can you do core colours for the pins drivers and passenger side?

Drivers

1
2
3
4
5
6
7
8
9
10

Passenger

1
2
3
4
5
6
7
8
9
10

Sorry. I cant ,make them all out from pic.

Thank you lots!
Logged

Offline beetie

  • Always Involved
  • ****
  • Thank You
  • -Given: 34
  • -Receive: 15
  • Posts: 178
Re: Wrings Diagrams - Headlights
« Reply #10 on: January 24, 2012, 08:47:31 pm »
I need this aswell please :happy2:

Someone has fitted xenons to my ed30 BADLY :fighting:. Chopping off the old 10 pin plug and bodging on a 12pin.

Logged

Offline beetie

  • Always Involved
  • ****
  • Thank You
  • -Given: 34
  • -Receive: 15
  • Posts: 178
Re: Wrings Diagrams - Headlights
« Reply #11 on: January 24, 2012, 09:21:03 pm »
I've asked a vw service technician, on another forum, for wiring diagrams (colours, sizes and pin locations)

If he comes through i'll post it on here for everyone's reference.
Logged

Offline Bikerz

  • Always Involved
  • ****
  • Thank You
  • -Given: 2
  • -Receive: 2
  • Posts: 182
    • Email
Re: Wrings Diagrams - Headlights
« Reply #12 on: January 30, 2012, 08:26:20 pm »
Apples, Beastie - Any news?
Logged

Offline beetie

  • Always Involved
  • ****
  • Thank You
  • -Given: 34
  • -Receive: 15
  • Posts: 178
Re: Wrings Diagrams - Headlights
« Reply #13 on: January 31, 2012, 05:40:58 pm »
just got them today

thanks to rubjonny on clubgti  :notworthy:

all docs are rubjonnys can be accessed through this link or one posted in his signature on clubgti's forum

https://docs.google.com/leaf?id=0B_V9-6xfgGlINzhhM2IyNmItOWRhZS00MzBkLTk2MTEtNGIyZDFmMDg0NWM2&sort=moddate&desc=true&layout=list&num=50

g5basicequipment.pdf is for the non xenon lights pages 8 and 10.

also on there is the xenon

g5xenon.pdf

will help me massively.
« Last Edit: January 31, 2012, 06:09:18 pm by beetie »
Logged

Offline beetie

  • Always Involved
  • ****
  • Thank You
  • -Given: 34
  • -Receive: 15
  • Posts: 178
Re: Wrings Diagrams - Headlights
« Reply #14 on: January 31, 2012, 06:02:18 pm »
from the flow diagram

Drivers (r/h)

pin1- level motor - 0.5mm thickness - black/blue
2 - level motor - 0.5mm - brown/white
3 - level motor - 0.5mm - brown/black
4 - not used
5 - ground (dipped) - 1.5mm - brown
6 - dipped beam - 1.5mm - yellow/blue
7 - ground (main+side) - 2.5mm - brown
8 - main - 1.5mm - white/purple
9 - signal - 1mm - black/green
10 - side - 0.5mm - grey/red

Passenger (l/h)

pin1- level motor - 0.5mm thickness - black/blue
2 - level motor - 0.5mm - brown/white
3 - level motor - 0.5mm - brown/black
4 - not used
5 - ground (dipped) - 1.5mm - brown
6 - dipped beam - 1.5mm - yellow/black
7 - ground (main+side) - 2.5mm - brown
8 - main - 1.5mm - white/black
9 - signal - 1mm - black/white
10 - side - 0.5mm - grey/black

 :happy2:
« Last Edit: February 15, 2012, 05:08:03 pm by beetie »
Logged
