Golf mk5 gt tdi, coolent pipe problem.
« on: February 01, 2013, 03:44:46 pm »
Hi all as the title says I'm looking for a picture of someones engine bay with the cover off as my coolent pipe seems to be touching the alternator and I've noticed a slight burn into the pipe but not deep enough to cause a leak, tucked it up under the cover for now is there anything to protect it from touching the alternator?

Offline doylebros

  • Just look at my post count
  • ******
  • Thank You
  • -Given: 44
  • -Receive: 309
  • Posts: 2775
Re: Golf mk5 gt tdi, coolent pipe problem.
« Reply #1 on: February 01, 2013, 06:38:44 pm »
Does this help in anyway?

Just click on the link.

http://elsaweb.spaghetticoder.org/doc/V.en-GB.BRA5R0324/32149310/3

Offline jason_rmh

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 69
  • -Receive: 81
  • Posts: 911
Re: Re: Golf mk5 gt tdi, coolent pipe problem.
« Reply #2 on: February 01, 2013, 09:24:48 pm »
What engine?  2.0 tdi 140?
Ill get you a pic of mine when its light tomorrow.
Jas

VCDS (Preston, Lancashire)

Offline zonedemon

  • Just Arrived
  • **
  • Thank You
  • -Given: 0
  • -Receive: 0
  • Posts: 18
    • Email
Re: Golf mk5 gt tdi, coolent pipe problem.
« Reply #3 on: February 01, 2013, 09:59:04 pm »
Hi yes its the 2.0 140 engine, the diagram didn't help much but thank you anyway.

The problem I have is the coolent pipe seems to rest on the alternator and its got a slight burn hole in it but doesn't leak as of yet, will be getting it replaced anyway.

Offline zonedemon

  • Just Arrived
  • **
  • Thank You
  • -Given: 0
  • -Receive: 0
  • Posts: 18
    • Email
Re: Golf mk5 gt tdi, coolent pipe problem.
« Reply #4 on: February 04, 2013, 12:49:20 pm »

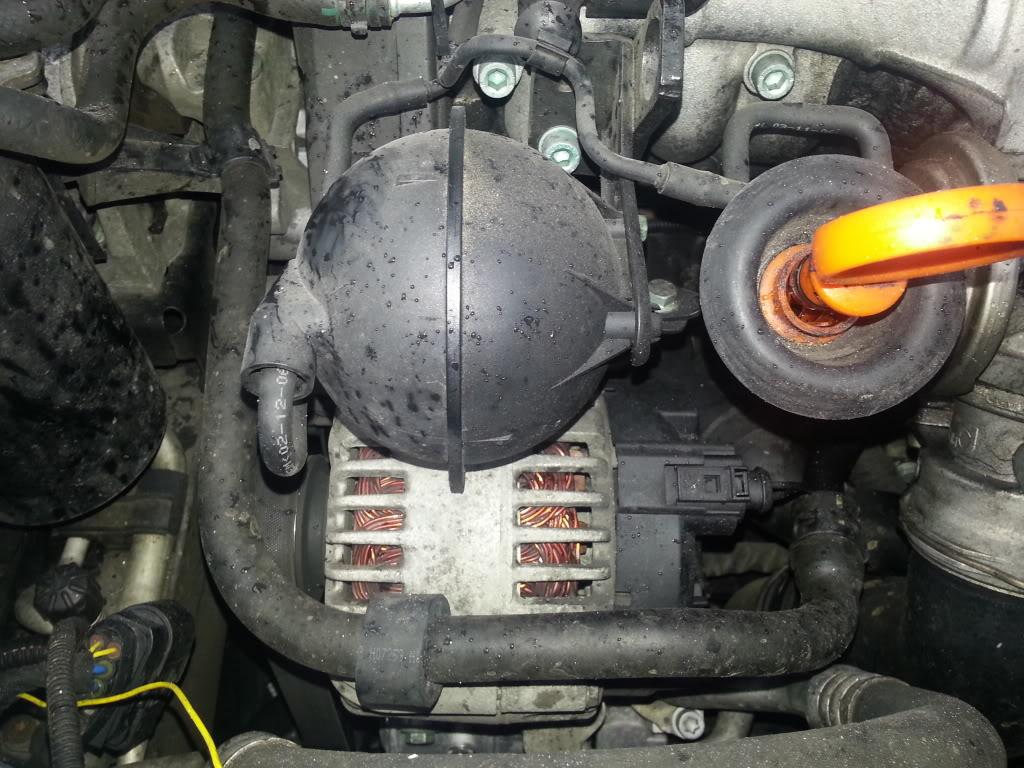

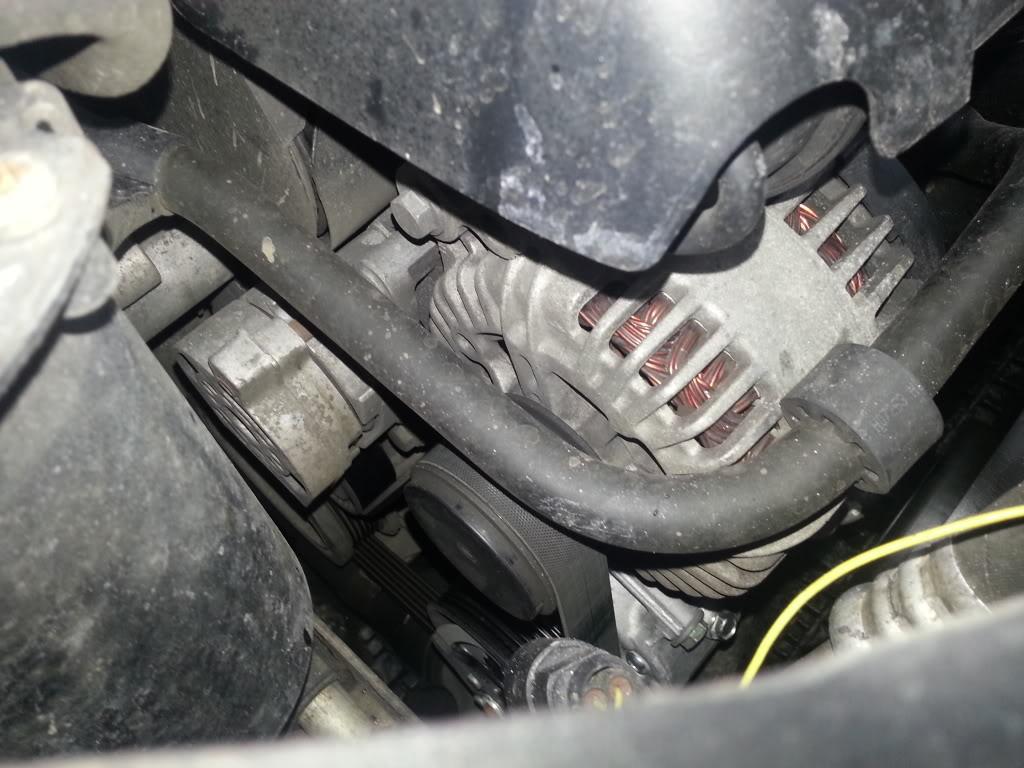

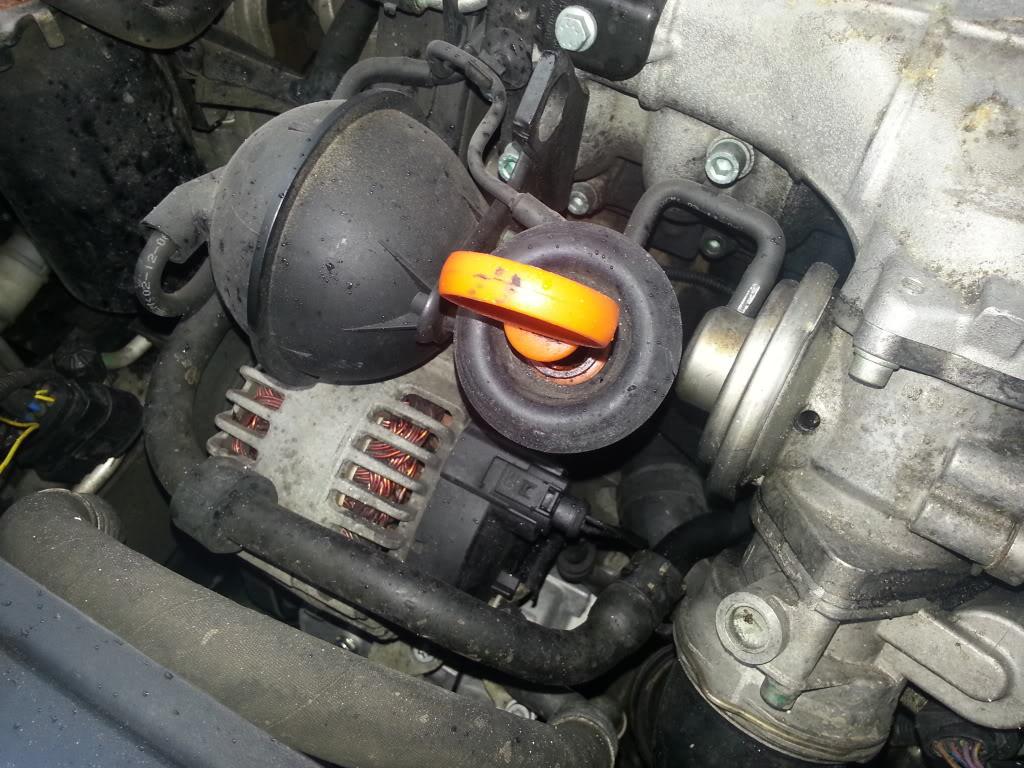

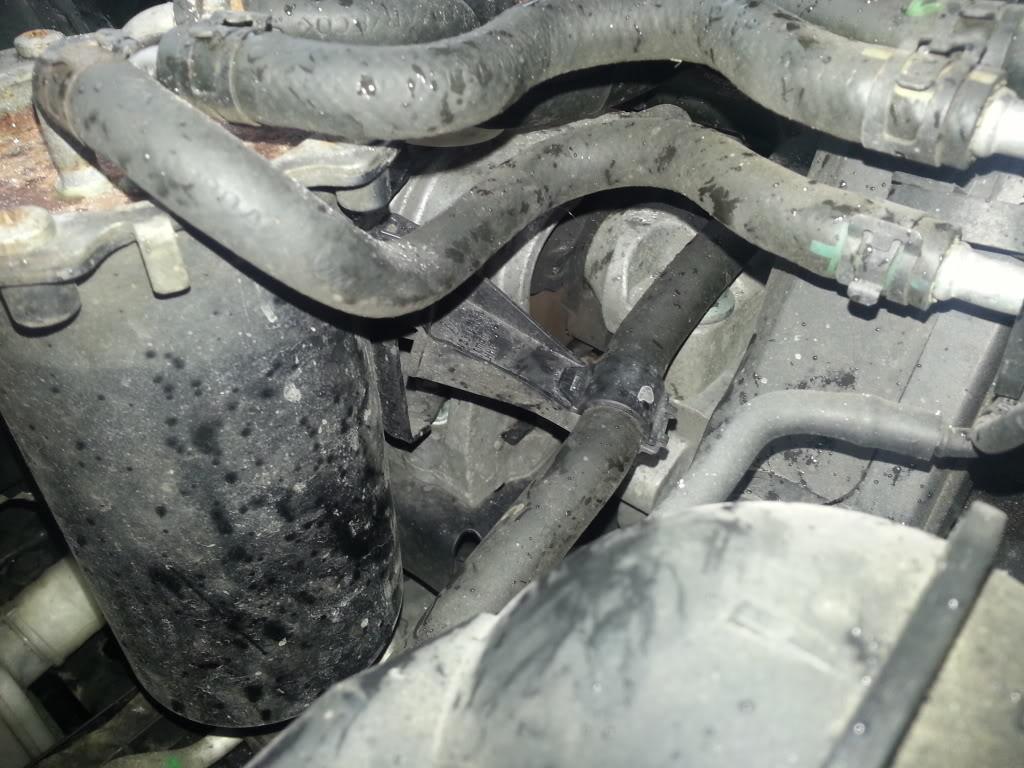

Here's a couple of pictures of the engine bay, and the pipe itself as it was resting and a picture of the damage caused from the heat off the alternator.







Any idea if there's anything to protect it from touching the alternator?

Offline jason_rmh

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 69
  • -Receive: 81
  • Posts: 911
Re: Re: Golf mk5 gt tdi, coolent pipe problem.
« Reply #5 on: February 04, 2013, 12:57:57 pm »
Apologies.  I didnt get chance to get some pictures.  Well get some today and compare to see if anything is missing?
Jas

VCDS (Preston, Lancashire)

Offline zonedemon

  • Just Arrived
  • **
  • Thank You
  • -Given: 0
  • -Receive: 0
  • Posts: 18
    • Email
Re: Golf mk5 gt tdi, coolent pipe problem.
« Reply #6 on: February 04, 2013, 01:15:02 pm »
Thank you Jaz.

I'm just not sure if there's ment to be a bracket in between them or if that rubber grommet thing is ment to be a protector and I've tried looking online for pictures to compare them.

Offline jason_rmh

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 69
  • -Receive: 81
  • Posts: 911
Re: Re: Golf mk5 gt tdi, coolent pipe problem.
« Reply #7 on: February 05, 2013, 02:24:02 pm »

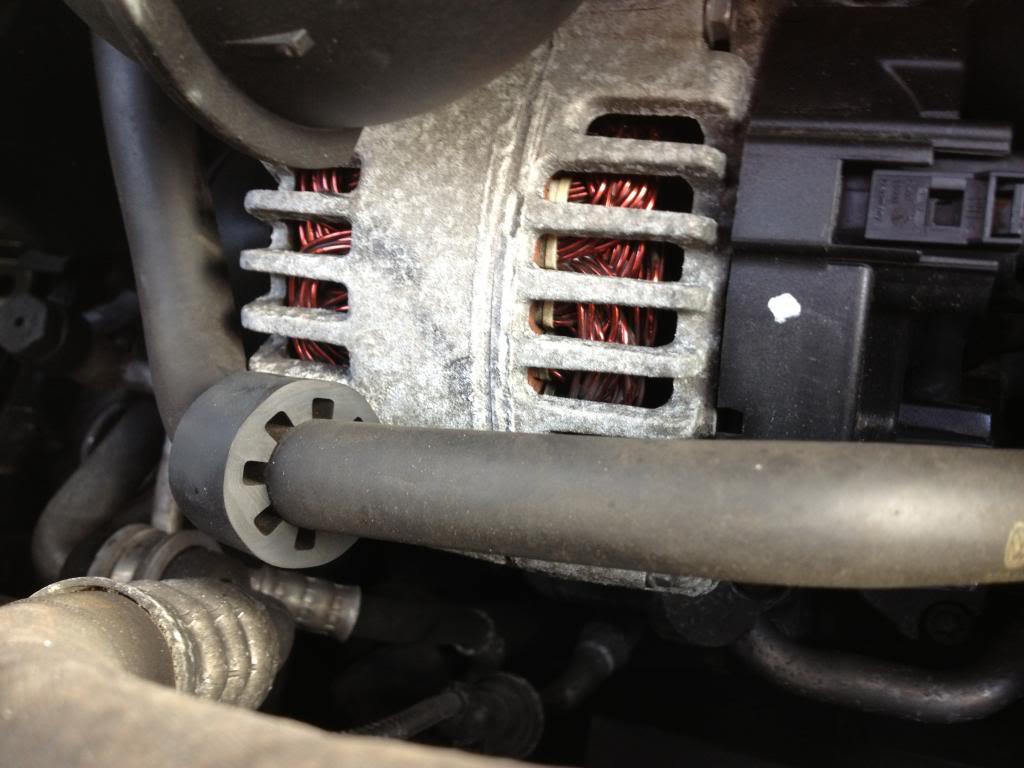

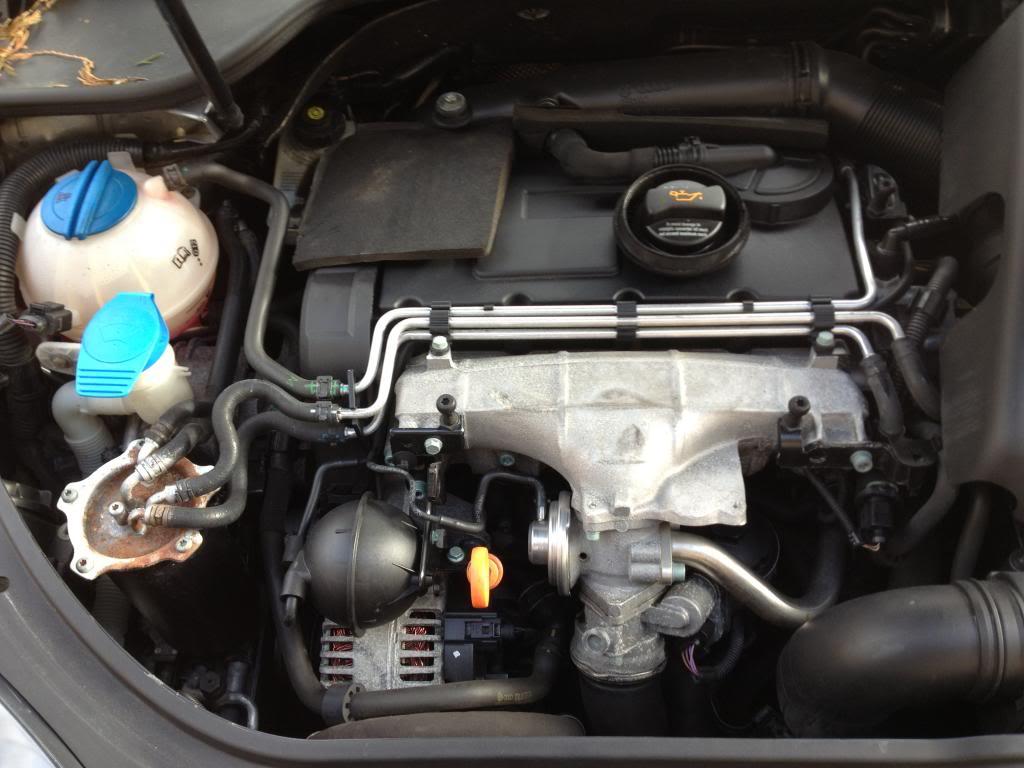

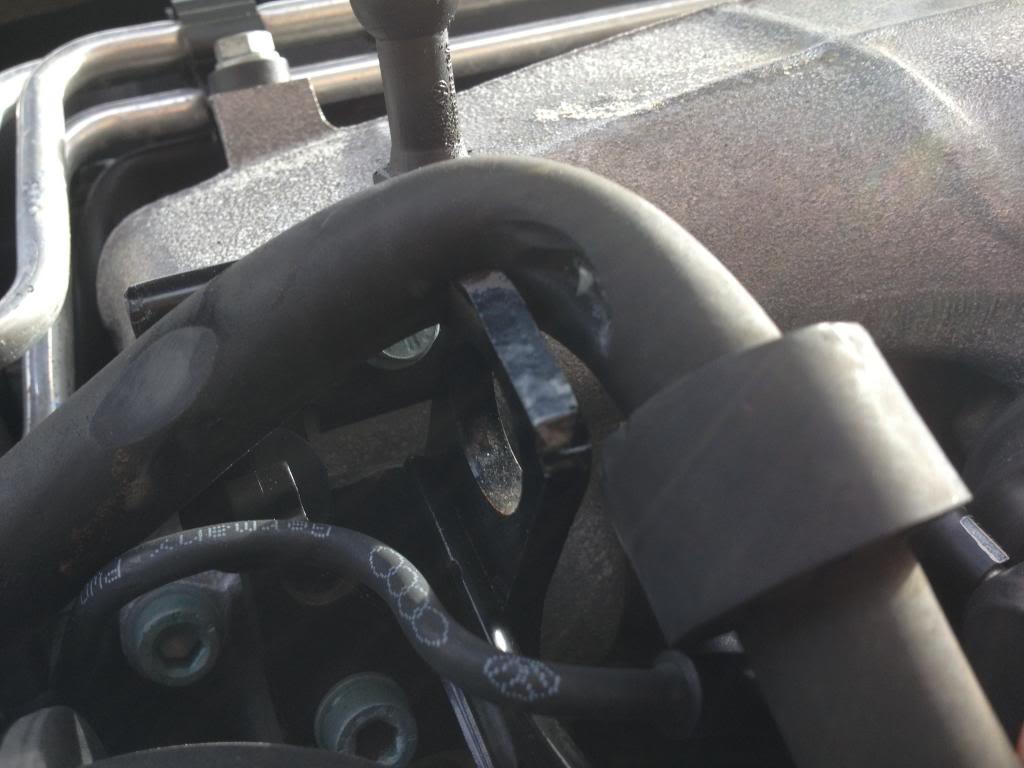

Looks like there is a plastic arm that holds the coolant pipe up and fixes to somewhere near the fuel filter, although mine is loose, see pic:


Other than that, the rubber bung rests on the alternator as in your pic.






Does that help?
Jas
« Last Edit: February 05, 2013, 10:22:54 pm by jason_rmh »

VCDS (Preston, Lancashire)

Offline jason_rmh

  • Won't Shut up.
  • *****
  • Thank You
  • -Given: 69
  • -Receive: 81
  • Posts: 911
Re: Re: Golf mk5 gt tdi, coolent pipe problem.
« Reply #8 on: February 15, 2013, 01:29:14 pm »
Did you get anywhere with this?
Jas
